One of the most common questions fabricators encounter when working with PVC foam board for the first time is deceptively simple: how do I join it?
The answer depends on the application. A joint in a lightweight exhibition display panel has entirely different requirements from a joint in a kitchen cabinet carcass or an outdoor sign frame. The wrong adhesive choice can result in a bond that looks fine during assembly but fails under load, temperature change, or moisture exposure. The wrong fastener approach can split the board, strip out under vibration, or leave visible surface damage that ruins a finished piece.
PVC foam board is a versatile and workable material, but it behaves differently from wood, metal, and solid plastics in ways that matter when designing and executing joints. Its cellular foam core provides excellent rigidity-to-weight ratio, but it also means that fastener pull-out strength and adhesive bond area must be considered more carefully than with denser materials.
This guide covers the full range of bonding and joining methods for PVC foam board — from adhesive chemistry to fastener selection, from surface preparation to joint design — with practical guidance for fabricators working across signage, display, furniture, construction, and industrial applications.
Before selecting a joining method, it is worth understanding the structural characteristics of PVC foam board that influence joint performance.
PVC foam board consists of a cellular foam core with a denser skin layer on each face. The skin layer is harder and more homogeneous than the core. This structure means:
Surface bonds (adhesive applied to the face of the board) engage primarily with the denser skin layer, which provides good adhesion
Edge bonds (adhesive applied to a cut edge) engage with the exposed foam core, which is more porous and provides a different adhesion profile
Fasteners driven through the face pass through the skin into the foam core, where pull-out resistance depends on density
Fasteners driven into the edge have lower pull-out resistance than face-driven fasteners in the same board
Board density directly affects both adhesive bond strength and fastener holding performance. Higher-density boards (0.60 g/cm³ and above) provide:
better screw pull-out resistance
more consistent adhesive bond area at cut edges
harder surface skin with better adhesive wetting
greater resistance to compression under clamping pressure during bonding
Lower-density boards (below 0.45 g/cm³) are more suitable for lightweight display applications where joints are not heavily loaded, and fastener or adhesive selection must account for the reduced holding strength of the foam core.
PVC has a coefficient of thermal expansion of approximately 70–80 × 10⁻⁶ /°C — significantly higher than wood, metal, or glass. For large bonded assemblies used in environments with temperature variation, this means:
rigid adhesive bonds in large panels can develop internal stress as the material expands and contracts
joint designs for outdoor or temperature-variable applications should accommodate movement
flexible adhesives are preferable to rigid ones for large-format bonded assemblies
Adhesive bonding is the most common method for permanently joining PVC foam board. The choice of adhesive depends on the joint type, the loads involved, the environment, and the production workflow.
PVC solvent cement works by dissolving the PVC polymer at the joint surfaces, allowing them to fuse together as the solvent evaporates. The result is a molecular bond that, when properly executed, is as strong as the parent material.
Best for:
face-to-face lamination of PVC foam board panels
edge joints in display and signage fabrication
applications where a permanent, rigid bond is required
Advantages:
very high bond strength when correctly applied
fast initial set, allowing rapid production workflows
no mixing required
low cost
Limitations:
requires close-fitting joint surfaces — gaps reduce bond strength significantly
solvent fumes require adequate ventilation
bond is permanent and irreversible
not suitable for bonding PVC foam board to dissimilar materials
Application process:
Ensure both surfaces are clean, dry, and free from dust, oils, or release agents
Apply solvent cement to both surfaces using a brush or applicator
Allow a brief flash-off period (typically 15–30 seconds) until the surface becomes tacky
Bring surfaces together with firm, even pressure
Hold or clamp for the manufacturer's recommended time — typically 30–60 seconds for initial handling strength
Allow full cure before subjecting the joint to load — typically 24 hours for full strength
Contact adhesive is applied to both surfaces, allowed to dry to a tack-free state, and then the surfaces are brought together. Bond forms instantly on contact.
Best for:
laminating surface materials (vinyl, HPL, decorative films) to PVC foam board
large-area face bonds where clamping is impractical
bonding PVC foam board to dissimilar substrates such as wood or metal
Advantages:
instant bond on contact — no clamping required
suitable for large surface areas
flexible bond accommodates some differential thermal movement
bonds well to a wide range of substrates
Limitations:
requires precise alignment before contact — repositioning after contact is difficult
lower structural strength than solvent cement or two-part adhesives
solvent-based formulations require ventilation; water-based alternatives are available
bond strength can reduce at elevated temperatures
Application process:
Apply adhesive evenly to both surfaces using a brush, roller, or spray
Allow to dry until tack-free — typically 10–20 minutes depending on temperature and humidity
Use alignment guides or spacers to position surfaces correctly before contact
Bring surfaces together from one edge, applying firm pressure progressively across the bond area
Roll with a rubber roller to ensure full contact and eliminate air pockets
Two-part adhesives — including epoxy, methacrylate (MMA), and polyurethane systems — provide the highest bond strengths and are suitable for load-bearing joints and structural applications.
Best for:
structural joints in display furniture, counters, and architectural elements
bonding PVC foam board to metal, glass, or composite substrates
applications requiring high shear or peel strength
joints that will be subjected to vibration or dynamic loading
Advantages:
very high bond strength — often exceeding the strength of the foam core itself
suitable for bonding dissimilar materials
gap-filling capability accommodates minor surface irregularities
good chemical and temperature resistance when cured
Limitations:
requires mixing of two components — pot life must be managed
longer cure time than solvent cement
higher material cost
some formulations require surface priming for best adhesion to PVC
Epoxy vs MMA for PVC foam board:
Property | Epoxy | Methacrylate (MMA) |
Bond strength | Very high | Very high |
Flexibility | Rigid | Slightly flexible |
Cure time | Slow to moderate | Fast |
Gap filling | Good | Excellent |
PVC adhesion | Good with primer | Excellent without primer |
Cost | Moderate | Higher |
For most structural PVC foam board applications, methacrylate adhesives are preferred due to their excellent adhesion to PVC without priming and their faster cure time.
Hot melt adhesives applied by glue gun or automated hot melt systems are widely used in display and point-of-sale fabrication for their speed and convenience.
Best for:
lightweight assembly of display components
temporary or semi-permanent joints
edge banding and trim attachment
rapid prototyping and sample production
Advantages:
instant bond — no clamping or cure time required
no solvents or mixing
low cost and widely available
easy to apply with standard equipment
Limitations:
lower structural strength than solvent cement or two-part adhesives
bond can creep under sustained load, particularly at elevated temperatures
not suitable for outdoor applications or temperature-variable environments
visible glue lines if not applied carefully
Adhesive Type | Bond Strength | Flexibility | Cure Time | Best Application |
PVC solvent cement | Very high | Rigid | Fast | Permanent PVC-to-PVC joints |
Contact adhesive | Moderate | Flexible | Medium | Large area lamination |
Epoxy (two-part) | Very high | Rigid | Slow | Structural, dissimilar materials |
Methacrylate (MMA) | Very high | Slight flex | Fast | Structural, load-bearing joints |
Hot melt | Low–moderate | Rigid | Instant | Lightweight display assembly |
Mechanical fasteners are essential for demountable assemblies, high-load joints, and applications where adhesive bonding alone is insufficient. Understanding fastener behavior in PVC foam board ensures reliable, professional results.
Screws are the most common mechanical fastener used with PVC foam board. Performance depends on board density, screw type, and installation technique.
Screw type selection:
Coarse-thread screws (wood screws or self-tapping plastic screws) provide better pull-out resistance in PVC foam board than fine-thread machine screws, because the coarse thread engages more material between threads
Self-drilling screws can be used in higher-density boards but may cause splitting in lower-density material — pre-drilling is generally recommended
Pan head or wafer head screws distribute clamping load over a larger area and are less likely to pull through the board face than countersunk heads under load
Pre-drilling:
Always pre-drill pilot holes in PVC foam board before driving screws:
Pilot hole diameter should be approximately 85% of the screw's root diameter
This prevents splitting of the board at the screw entry point
In lower-density boards, slightly larger pilot holes reduce the risk of surface cracking
Pull-out strength by density:
Board Density | Approximate Screw Pull-Out (M4 screw, 20 mm engagement) |
0.40 g/cm³ | Low — suitable for lightweight applications only |
0.50 g/cm³ | Moderate — adequate for display and signage |
0.60 g/cm³ | Good — suitable for furniture and structural applications |
0.65 g/cm³+ | High — comparable to medium-density wood composites |
For applications requiring reliable screw holding in lower-density boards, consider using threaded inserts or through-bolts to distribute load more effectively.
Threaded inserts pressed or bonded into pre-drilled holes provide a much stronger and more reliable thread than a screw driven directly into PVC foam board. They are particularly valuable for:
joints that will be assembled and disassembled repeatedly
high-load connections in display furniture and counters
connections where precise alignment is required
Installation:
Drill a hole to the insert's specified diameter
Apply a small amount of two-part adhesive to the outside of the insert
Press or drive the insert flush with the surface
Allow adhesive to cure before loading the insert
For high-load joints or connections to metal frames and structures, through-bolts with washers provide the most reliable fastening:
Use large-diameter washers to distribute load over a greater area of the board face
Apply a torque limit when tightening — overtightening compresses the foam core and reduces joint strength
For outdoor applications, use stainless steel fasteners to prevent corrosion staining
Blind rivets (pop rivets) are useful for attaching PVC foam board to metal frames and substrates:
Use large-flange rivets to prevent pull-through
Pre-drill holes cleanly — torn or ragged holes reduce rivet holding strength
Suitable for permanent connections where disassembly is not required
Standard flat-pack furniture hardware — cam locks, connector bolts, and barrel nuts — works well with PVC foam board for demountable display and furniture systems:
These connectors are designed for panel thicknesses of 15 mm and above
They allow repeated assembly and disassembly without degrading the joint
CNC routing ensures precise hole placement for consistent connector alignment

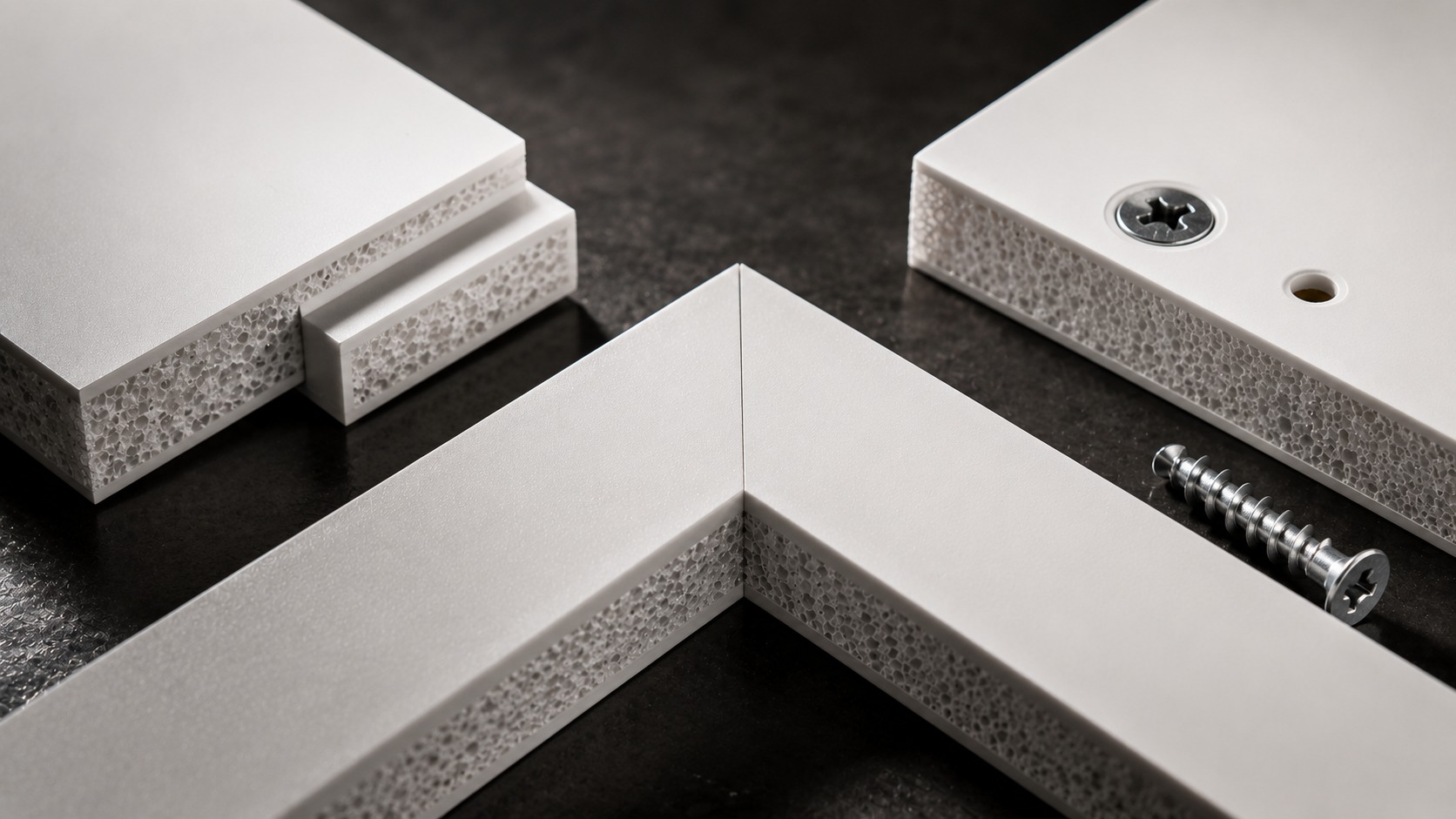

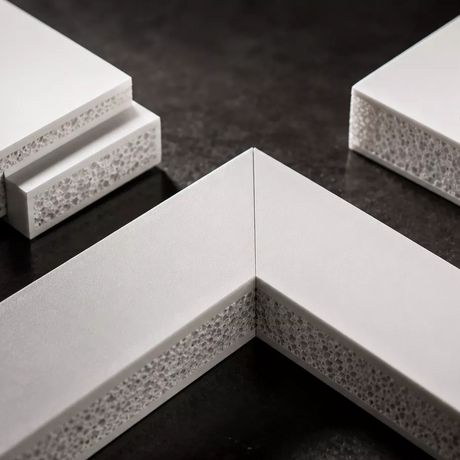

The geometry of the joint itself significantly affects strength and appearance. Good joint design maximizes bond area, minimizes stress concentrations, and accommodates the material's properties.
The simplest joint — two square-cut edges brought together. Suitable for lightweight applications with adhesive reinforcement, but provides limited mechanical strength on its own due to the small bond area at cut edges.
Improve butt joint performance by:
using a backing strip or gusset bonded behind the joint
combining with mechanical fasteners
increasing board thickness to provide more edge bond area
A rebate cut into one or both boards increases the bond area and provides mechanical location that resists shear forces. Suitable for cabinet carcass construction and display furniture.
Advantages over butt joints:
larger adhesive bond area
mechanical interlock resists shear
self-locating during assembly
Mitre joints provide a clean, frameless appearance at corners and are widely used in display and signage fabrication. The 45° cut increases the bond area compared to a butt joint.
Key considerations:
Mitre joints in PVC foam board expose the foam core at the cut face — use solvent cement or MMA adhesive for best bond strength
Support the joint during cure to maintain accurate alignment
For structural mitre joints, reinforce with a backing strip or internal gusset
CNC-routed tongue and groove joints provide excellent alignment, increased bond area, and mechanical interlock. Suitable for panel-to-panel connections in furniture and architectural applications.
As discussed in the exhibition display context, CNC-routed slot-and-tab joints allow tool-free assembly of lightweight display structures. Design slots at 50–60% of board thickness with 0.2–0.3 mm clearance for easy assembly.
Overlapping joints bonded with contact adhesive or solvent cement provide large bond areas and are suitable for laminating multiple layers of PVC foam board to achieve greater thickness or rigidity.
Regardless of the adhesive or fastener method chosen, surface preparation is the single most important factor in achieving a reliable bond. PVC foam board surfaces can carry contaminants from manufacturing, storage, and handling that significantly reduce adhesive performance.
Before bonding, clean all surfaces with:
Isopropyl alcohol (IPA) — the most effective general-purpose cleaner for PVC surfaces. Apply with a clean lint-free cloth and allow to evaporate fully before applying adhesive.
Acetone — effective for removing oils and release agents but can slightly soften the PVC surface. Use sparingly and allow full evaporation.
Never use:
silicone-based cleaners or polishes — these contaminate the surface and prevent adhesive bonding
petroleum-based solvents — can damage the PVC surface and leave residues
For adhesives that benefit from a mechanical key — particularly contact adhesives and two-part structural adhesives — light sanding with 180–220 grit sandpaper improves adhesion by:
increasing surface area
removing any surface skin contamination
creating a mechanical profile for the adhesive to grip
After sanding, remove all dust with a clean cloth or compressed air before applying adhesive.
Some adhesive systems — particularly certain epoxy formulations — benefit from a dedicated PVC primer applied before the adhesive. The primer improves wetting of the PVC surface and enhances adhesive bond strength. Always follow the adhesive manufacturer's recommendations regarding priming.
Understanding why bonds fail helps fabricators avoid the most common mistakes.
Failure Mode | Likely Cause | Prevention |
Adhesive peels from surface | Surface contamination or release agent | Clean with IPA before bonding |
Bond fails at foam core | Adhesive stronger than foam — correct failure mode for well-bonded joints | Use higher-density board for load-bearing joints |
Joint opens under temperature change | Rigid adhesive in large panel with thermal movement | Use flexible adhesive or design for movement |
Screw pulls out under load | Low-density board or insufficient engagement depth | Use higher-density board, longer screws, or threaded inserts |
Solvent cement bond is weak | Insufficient solvent contact time or poor surface fit | Ensure both surfaces are coated and joint fit is accurate |
Hot melt joint creeps over time | Sustained load at elevated temperature | Use structural adhesive for load-bearing joints |
Bonding and joining PVC foam board successfully requires matching the method to the application. There is no single universal solution — the right adhesive for a lightweight exhibition display panel is not the right adhesive for a structural cabinet joint, and the right fastener for a demountable display system is not the right fastener for a permanent outdoor installation.
The key principles that apply across all applications are:
Prepare surfaces thoroughly — cleanliness is the foundation of every reliable bond
Match adhesive chemistry to the joint requirements — consider strength, flexibility, cure time, and substrate compatibility
Select fasteners appropriate to the board density — and pre-drill to prevent splitting
Design joints that maximize bond area and accommodate the material's thermal expansion characteristics
Use higher-density board where joint strength is critical to the application
Fabricators who apply these principles consistently will find PVC foam board to be a highly reliable and workable material across a wide range of joining and assembly applications.
For guidance on selecting the right board density and thickness for your specific application, refer to our comprehensive guide on PVC foam board dimensions, standard sizes, and thicknesses . To understand how Celuka and free foam boards differ in their surface hardness and machinability — both of which affect bonding performance — see our detailed comparison of Celuka PVC foam board vs free foam board .
To explore our full range of PVC foam board products, visit our PVC Foam Board category or browse our PVC Sheet collection .
For permanent PVC-to-PVC joints, solvent cement provides the strongest bond and fastest cure. For structural joints or bonding to dissimilar materials, methacrylate (MMA) two-part adhesive is recommended. For large-area lamination, contact adhesive is the most practical choice.
No. PVA adhesive does not bond effectively to PVC surfaces. Use solvent cement, contact adhesive, or a two-part structural adhesive depending on the application.
For solvent cement and contact adhesive, priming is generally not required if the surface is clean. For some two-part epoxy systems, a PVC primer improves bond strength. Always follow the adhesive manufacturer's specific recommendations.
Always pre-drill a pilot hole before driving screws. The pilot hole should be approximately 85% of the screw's root diameter. Use coarse-thread screws rather than fine-thread machine screws for better pull-out resistance.
Yes, but adhesive selection is important. Use adhesives rated for outdoor use and temperature variation. Avoid rigid adhesives in large outdoor panels — flexible adhesives accommodate thermal expansion and contraction. Use stainless steel or galvanized fasteners to prevent corrosion.
Joints that maximize bond area — such as rebate joints, tongue and groove, or lap joints — provide the strongest adhesive bonds. Butt joints at cut edges have the smallest bond area and should be reinforced with backing strips or mechanical fasteners for load-bearing applications.
This depends on the adhesive. Solvent cement reaches handling strength in 30–60 seconds but requires 24 hours for full strength. Two-part adhesives vary by formulation — follow the manufacturer's cure schedule. Never load a joint before it has reached full cure, particularly for structural applications.
Working on a fabrication project that requires reliable, professional-grade PVC foam board?
Jinbao PVC manufactures a comprehensive range of PVC foam board products across densities from 0.40 to 0.70 g/cm³, in thicknesses from 1 mm to 40 mm, suitable for every bonding and joining application from lightweight display to structural furniture. Our technical team can advise on the right board specification for your specific joining requirements.
Contact us today to request samples, technical data sheets, and density specifications for your project.
