PVC foam board is one of the most versatile fabrication materials available — but its final appearance depends almost entirely on how the surface is treated. A poorly prepared or incorrectly finished board will show brush marks, peel within weeks, or develop an uneven sheen that undermines the quality of the finished piece. A correctly prepared and finished board, on the other hand, can achieve results that are indistinguishable from painted timber, high-pressure laminate, or factory-finished panel products.
The challenge is that PVC foam board behaves differently from timber, MDF, and metal in ways that matter for surface finishing. It is non-porous, so it does not absorb primer or paint the way wood does. Its surface can carry manufacturing release agents that prevent adhesion. Its thermal expansion coefficient is higher than most other panel materials, which means rigid coatings can crack or peel if applied incorrectly. And different density grades have meaningfully different surface characteristics that affect how they accept and hold a finish.
This guide covers everything a fabricator, painter, or specifier needs to know about finishing PVC foam board — from surface preparation through primer selection, paint systems, lamination, and specialist finishes — with practical guidance for the most common application categories.
Before selecting a finishing system, it is important to understand what you are working with.
PVC foam board has a skin layer on each face that is denser and harder than the foam core beneath it. In Celuka-process boards, this skin is formed by rapid cooling against a calibration sleeve during extrusion, producing a harder, more homogeneous surface that accepts paint and adhesives more consistently. In free foam boards, the skin is thinner and softer.
The surface skin is the layer that paint, primer, and laminate adhesives bond to. Its hardness, smoothness, and chemical cleanliness directly determine how well a finish will adhere and how long it will last.
For a detailed comparison of how Celuka and free foam boards differ in surface hardness and skin quality — both of which directly affect finishing performance — see our guide on Celuka PVC foam board vs free foam board: what's the difference .
PVC is a non-polar polymer. Many standard paints and primers are formulated for porous or polar substrates — timber, plaster, metal — and do not wet or bond effectively to non-polar PVC surfaces without surface preparation or appropriate primer selection.
Additionally, PVC foam board surfaces can carry:
Manufacturing release agents — applied during production to prevent boards sticking to tooling; these must be removed before finishing
Dust and handling contamination — accumulated during storage and transport
Surface oxidation — minor surface changes that occur over time in storage
All of these factors can cause adhesion failure if not addressed in surface preparation.
Higher-density boards — particularly Celuka grades at 0.55 g/cm³ and above — have harder, smoother surfaces that produce better finishing results. Lower-density boards have softer surfaces that are more susceptible to tooling marks during fabrication and may require more preparation work to achieve a smooth, consistent finish.
For applications where surface finish quality is critical — high-gloss painted furniture, architectural trim, premium display elements — specify Celuka board at 0.55 g/cm³ or above. For a full explanation of how density affects surface properties, see our PVC foam board density guide .

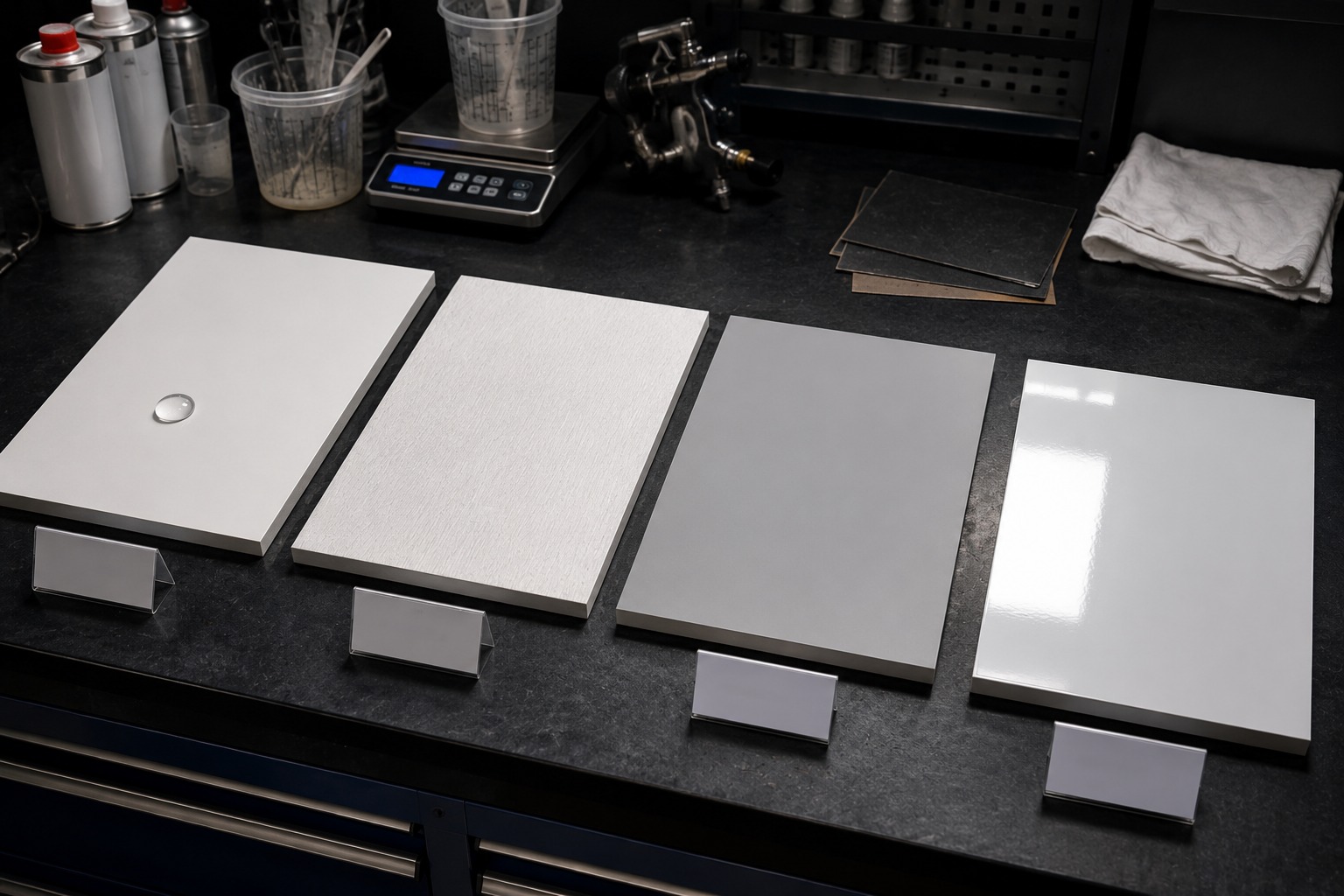

Surface preparation is the most important step in finishing PVC foam board. No paint system, however well formulated, will compensate for inadequate preparation.
Clean all surfaces with isopropyl alcohol (IPA) using a clean, lint-free cloth. IPA removes:
manufacturing release agents
handling oils and fingerprints
dust and light surface contamination
Apply IPA generously, wipe in one direction, and allow to evaporate fully — typically 2–3 minutes — before proceeding. Do not use silicone-based cleaners, petroleum solvents, or general-purpose household cleaners, as these can leave residues that prevent adhesion.
For boards that have been in storage for extended periods or show visible surface contamination, a second IPA wipe is recommended.
For most paint systems applied over PVC foam board, light mechanical abrasion improves adhesion by:
increasing the surface area available for bonding
removing any residual surface skin contamination
creating a mechanical key for the primer or adhesive
Use 180–220 grit sandpaper for general surface preparation. Sand lightly and evenly — the goal is to scuff the surface, not to remove material. Avoid coarser grits, which can leave visible scratches that telegraph through the finished coat.
After sanding, remove all dust with a tack cloth or clean compressed air before applying any coating.
When abrasion is not required: For UV flatbed printing directly onto PVC foam board, mechanical abrasion is generally not recommended as it can create surface irregularities that affect print quality. Clean with IPA only.
Cut edges expose the foam core and require additional preparation before finishing:
For painted finishes: Apply a thin coat of PVC-compatible filler or high-build primer to cut edges and allow to cure. Sand smooth before applying finish coats. Repeat if necessary to achieve a smooth, closed surface.
For laminated finishes: Apply PVC edge banding before laminating faces, or seal edges with a compatible adhesive coat.
For routed profiles: Routed edges in higher-density Celuka boards are generally smooth enough to paint directly after cleaning. Lower-density boards may require filling of any torn or open-cell areas before finishing.
Primer selection is critical for PVC foam board finishing. The wrong primer will not bond to the PVC surface and will peel, taking the finish coat with it.
Solvent-based adhesion primers for plastics
These primers contain adhesion promoters specifically formulated for non-polar polymer surfaces including PVC. They provide excellent bonding to the PVC surface and a reliable key for subsequent paint coats.
Apply in thin, even coats
Allow full flash-off and cure before applying finish coats
Check the manufacturer's data sheet for recoat windows — applying finish coats too early or too late can compromise adhesion
Two-part epoxy primers
Two-part epoxy primers provide excellent adhesion to PVC and a very hard, chemically resistant primer coat. They are preferred for:
exterior applications subject to UV and weather exposure
marine and coastal applications
high-traffic surfaces requiring maximum durability
Water-based acrylic adhesion primers
Modern water-based adhesion primers formulated for plastics can perform well on PVC foam board and are preferred for environmental and health reasons in many workshop environments. Key requirements:
must be specifically formulated for plastics or non-porous surfaces — standard water-based wood primers are not suitable
allow full dry time before sanding and applying finish coats
Primer Type | Reason to Avoid |
Standard interior emulsion primer | Not formulated for non-porous surfaces — will peel |
Oil-based wood primer | Poor adhesion to PVC |
Shellac-based primer | Not compatible with PVC surfaces |
General-purpose spray primer | Usually formulated for metal or wood — test before use |
Apply primer in thin, even coats using a brush, roller, or spray. Spray application produces the most consistent results for large panels and furniture components.
Brush application: Use a high-quality synthetic bristle brush. Apply in long, even strokes. Avoid overworking the primer as it begins to set.
Roller application: Use a short-nap foam roller for smooth surfaces. Avoid heavy-nap rollers that introduce unwanted texture.
Spray application: HVLP spray systems produce the best results. Thin primer to the manufacturer's recommended viscosity for spraying.
Allow primer to cure fully before applying finish coats. Light sanding with 220–320 grit between primer and finish coats improves adhesion and surface smoothness.
Two-part polyurethane paint is the premium choice for PVC foam board finishing. It provides:
exceptional hardness and scratch resistance
excellent UV stability in exterior-grade formulations
high-gloss or satin finishes with consistent sheen
good chemical resistance
long service life in both interior and exterior applications
Best for: furniture, cabinetry, architectural trim, premium display elements, exterior signage

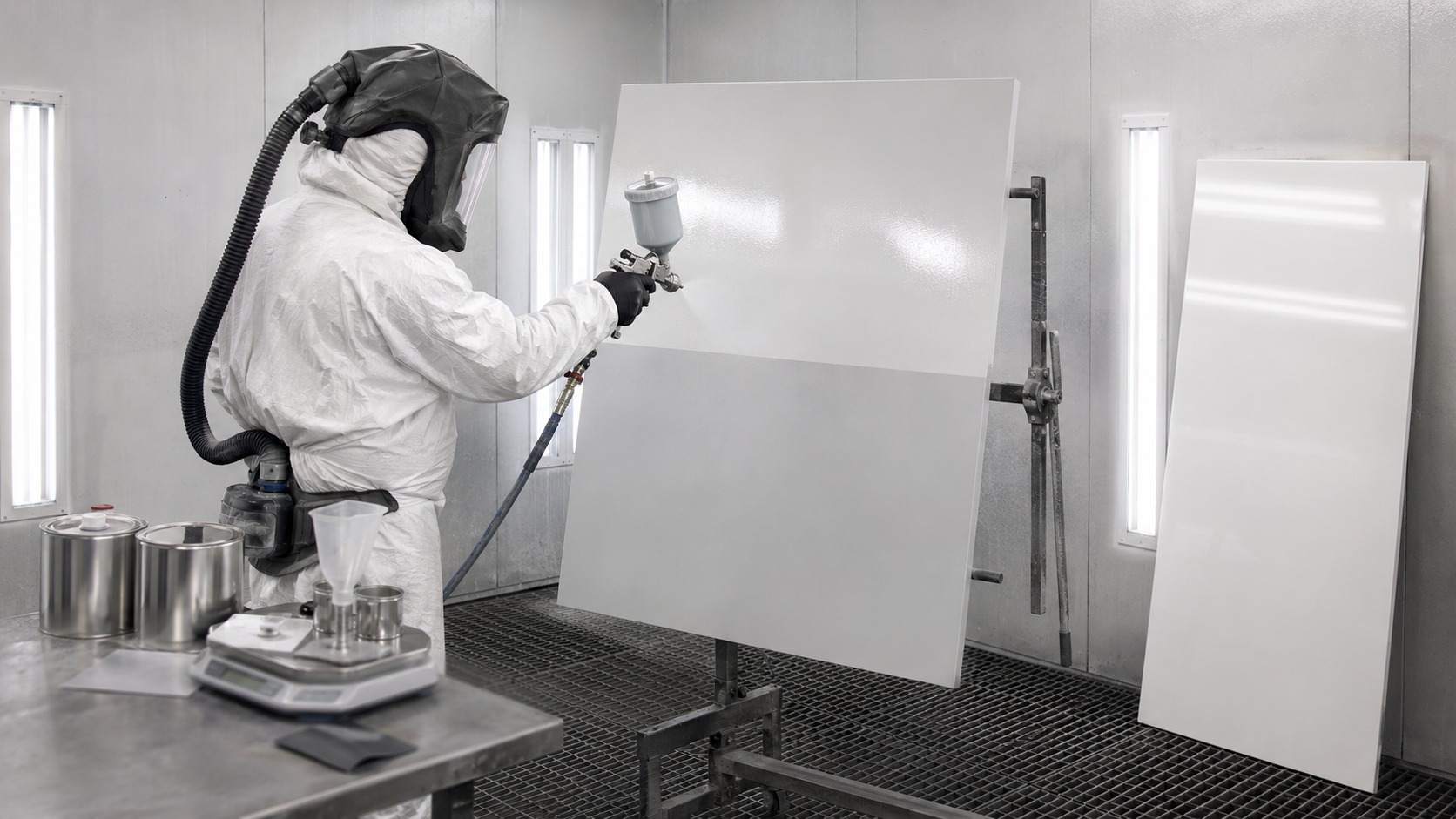

Application: Spray application is strongly recommended for 2K PU on PVC foam board. Brush application is possible but produces inferior results in high-gloss finishes. Mix components at the manufacturer's specified ratio and use within the pot life window.
Safety note: 2K PU paints contain isocyanate hardeners that require appropriate respiratory protection and ventilation. Follow all manufacturer safety requirements.
High-quality single-part acrylic paints provide good results on PVC foam board for interior applications and are easier to apply than 2K systems.
Available in water-based and solvent-based formulations
Water-based acrylics are preferred for environmental and health reasons
Lower hardness and chemical resistance than 2K PU
Suitable for interior furniture, display elements, and signage
Best for: interior furniture, display elements, general signage, applications where 2K PU is impractical
Alkyd paints can be used on PVC foam board over an appropriate adhesion primer, but they are generally not the first choice:
longer dry times than acrylic or 2K PU systems
tendency to yellow over time in interior applications
lower flexibility than acrylic — more susceptible to cracking with the thermal movement of PVC panels
If alkyd paint is specified, use a PVC-compatible adhesion primer and allow full cure time between coats.
Aerosol spray paints formulated for plastics can produce good results for small components, prototypes, and touch-up work:
use products specifically labeled for plastic substrates
apply multiple thin coats rather than one heavy coat
allow adequate flash-off between coats
For production work, aerosol spray is not practical — use spray gun application with appropriate paint systems.
Paint Type | Hardness | UV Resistance | Application | Best Use |
2K Polyurethane | Excellent | Excellent (exterior grade) | Spray | Furniture, exterior, premium |
Single-part acrylic | Good | Moderate | Brush/roller/spray | Interior signage, display |
Alkyd | Moderate | Moderate | Brush/roller | General interior |
Aerosol (plastic) | Moderate | Variable | Aerosol | Small parts, touch-up |
High-gloss finishes on PVC foam board require the most careful preparation and application technique, as any surface imperfection is amplified under a gloss finish.
Step-by-step process:
Clean with IPA — two wipes recommended
Sand with 180 grit to create a consistent key
Remove all dust with tack cloth or compressed air
Apply adhesion primer — two thin coats, sanding with 320 grit between coats
Apply 2K PU gloss — two to three thin coats by spray, sanding lightly with 400 grit between coats
Final coat: apply without sanding; allow full cure
Optional: machine polish with cutting compound and finishing polish for maximum gloss depth
Key considerations:
Work in a dust-free environment — dust nibs in a gloss finish are very visible
Maintain consistent spray distance and speed for even film build
Allow each coat to reach the correct flash-off stage before applying the next
Satin and matte finishes are more forgiving than high-gloss and are suitable for brush or roller application in addition to spray:
follow the same preparation steps as for gloss
satin and matte finishes hide minor surface imperfections better than gloss
two finish coats are generally sufficient for full coverage and sheen consistency
Textured finishes — including fine sand texture, stone effect, and stipple — can be applied to PVC foam board using textured paint products:
apply over a primed surface
use a roller, brush, or spray depending on the texture product specification
textured finishes are particularly effective for architectural trim and display elements where a premium tactile appearance is required
Metallic paint finishes — gold, silver, bronze, copper — are widely used on dimensional PVC foam board elements such as lettering, logos, and display features:
apply over a primed, smooth surface for maximum metallic effect
spray application produces the most consistent metallic appearance
protect with a clear lacquer topcoat to prevent tarnishing and improve durability
Chalk-style and ultra-flat decorative paints have become popular for retail display and interior design applications:
apply over a primed surface
these finishes are forgiving of minor surface variations
seal with a compatible matte varnish for improved durability and cleanability
For many applications, lamination with decorative films or high-pressure laminate provides a more durable and consistent finish than paint, and eliminates the spray booth and cure time requirements of paint systems.
Self-adhesive vinyl films are the most widely used surface finish for PVC foam board in signage and display applications:
available in thousands of colors, textures, and finishes including gloss, matte, brushed metal, wood grain, and carbon fiber
applied cold using a squeegee or laminator
cast vinyl films conform better to routed profiles and edges than calendered vinyl
overlaminate films add protection and can modify the surface finish (matte over gloss, anti-scratch, anti-graffiti)

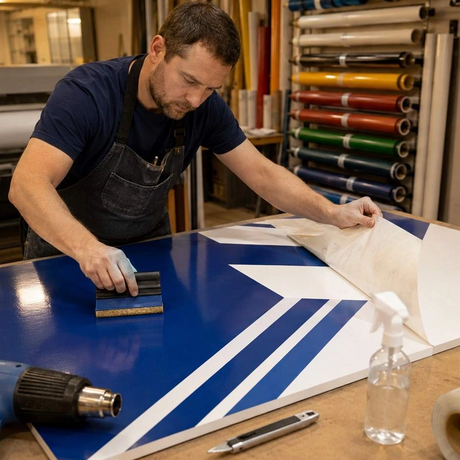

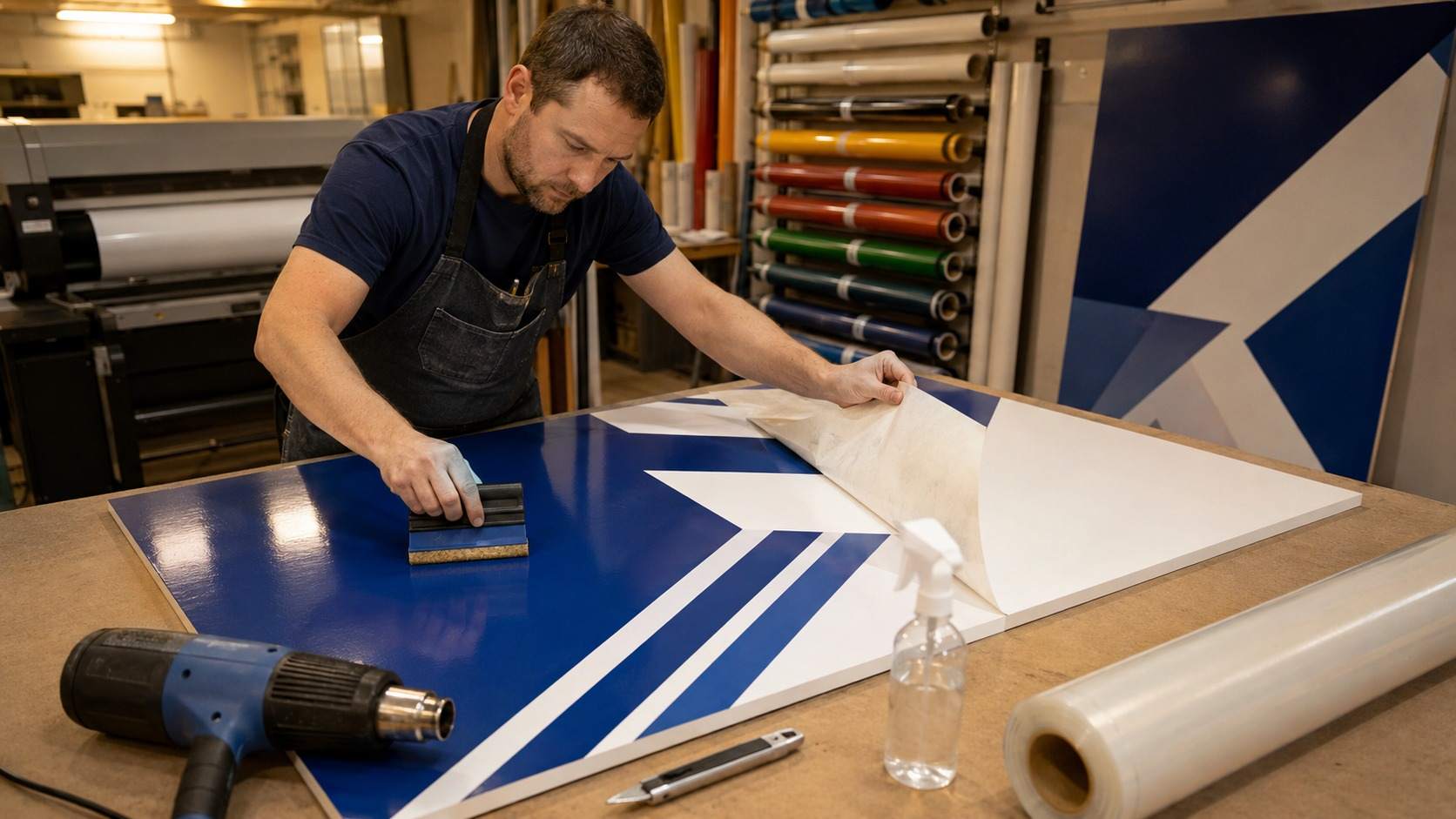

Application best practices:
Clean the board surface with IPA before applying vinyl
Use a felt-edged squeegee to avoid scratching the vinyl during application
Apply from one edge, working progressively across the panel to avoid trapped air
Use a heat gun to conform vinyl around edges and into routed profiles
HPL bonded to PVC foam board produces a highly durable surface suitable for furniture, counters, and high-traffic applications:
bond HPL to the board face using contact adhesive, applied to both surfaces and allowed to become tack-free before joining
apply pressure evenly across the full surface using a roller or press
trim edges cleanly with a router or trimmer after bonding
apply PVC edge banding to exposed edges for a complete finish
HPL is available in a very wide range of colors, textures, and wood grain patterns, making it suitable for furniture applications where a specific decorative appearance is required alongside maximum surface durability.
Thermofoil — a heat-activated vinyl film — is widely used in kitchen cabinet door production:
applied using a membrane press with heat and vacuum
conforms tightly to routed profiles and shaped edges
provides a seamless, moisture-resistant surface
available in gloss, matte, and wood grain finishes
For graphic applications, UV flatbed direct printing onto PVC foam board eliminates the lamination step entirely:
produces sharp, accurate color reproduction directly on the board surface
no lamination or application labor required
suitable for both photographic imagery and graphic design content
protect with a UV-stable overlaminate for outdoor or high-traffic applications
Problem | Likely Cause | Solution |
Paint peels from surface | Wrong primer or no surface cleaning | Clean with IPA; use PVC-compatible adhesion primer |
Brush marks visible in finish | Paint applied too thick or overworked | Apply thinner coats; switch to spray application |
Finish cracks over time | Rigid paint on large panel with thermal movement | Use flexible paint system; allow expansion gaps in large panels |
Uneven sheen in gloss finish | Inconsistent primer coat or surface contamination | Ensure even primer coverage; re-clean before finish coat |
Vinyl film lifts at edges | Inadequate surface cleaning or wrong vinyl type | Clean with IPA; use cast vinyl; apply heat to edges |
Primer sands through easily | Primer not fully cured before sanding | Allow full cure time per manufacturer's data sheet |
Paint bubbles or blisters | Solvent trapped under coat applied too thick | Apply thinner coats; allow adequate flash-off between coats |
Routed edges show open foam | Normal — foam core exposed by routing | Fill with high-build primer or PVC filler; sand smooth |
Finish yellows over time | Alkyd paint or non-UV-stable system | Switch to acrylic or 2K PU with UV stabilizers |
HPL delaminating at edges | Insufficient adhesive coverage at edges | Apply adhesive to within 5 mm of all edges; use edge banding |
For indoor signage and display applications, the most common finishing approaches are:
Direct UV printing — most efficient for graphic content; no additional finishing required
Applied vinyl — flexible, replaceable, wide color and texture range
Spray paint over primer — for solid color elements, dimensional lettering, and shaped features
For outdoor signage, use UV-stable paint systems or UV-laminated vinyl, and ensure all cut edges are sealed before installation.
For furniture applications, surface finish quality and durability are paramount:
2K PU paint — premium finish for high-end furniture; maximum hardness and durability
HPL laminate — highly durable decorative surface; wide color and texture range; preferred for horizontal surfaces subject to wear
Thermofoil/vinyl wrap — cost-effective decorative finish for cabinet doors and shaped panel profiles
For kitchen and bathroom furniture, ensure the finish system is rated for moisture resistance. For guidance on specifying PVC foam board for kitchen and bathroom applications, see our guide to choosing a reliable PVC foam board manufacturer .
For exterior architectural applications, durability and UV stability are the primary requirements:
Factory-colored PVC foam board — the most durable option; color is integral to the material and does not require maintenance repainting
2K PU exterior paint — high durability; UV-stable formulations available in a wide color range
Exterior-grade acrylic paint — good performance; easier application than 2K PU; requires periodic maintenance recoating
Seal all cut edges and butt joints with UV-stable, paintable sealant before painting. This prevents water ingress at joints and provides a clean, professional finish line.
For exhibition display applications, speed of production and consistency of finish are the priorities:
Direct UV printing — industry standard for graphic backdrop panels
Applied vinyl graphics — for panels requiring replaceable graphics
Spray paint — for dimensional elements, counters, and structural display components
For a complete guide to PVC foam board in exhibition and display fabrication, see our article on PVC foam board for exhibition and trade show displays .
For marine finishing, key requirements are moisture resistance and UV stability:
use marine-grade two-part paint systems for all exposed surfaces
ensure full edge sealing before any paint application
apply UV-stable topcoat for any surfaces with direct sun exposure
use 316 stainless steel or non-metallic fittings throughout
Achieving a high-quality, durable finish on PVC foam board is entirely achievable with the right preparation, primer, and paint or laminate system. The material's non-porous surface requires a different approach from timber or MDF, but once the principles are understood — thorough cleaning, appropriate primer selection, correct application technique — the results are consistently professional and long-lasting.
The key principles to carry into every finishing project:
Preparation is everything — IPA cleaning and appropriate abrasion are non-negotiable steps, not optional shortcuts
Use the right primer — a PVC-compatible adhesion primer is the foundation of every durable paint finish on this material
Match the paint system to the application — 2K PU for demanding applications, acrylic for general interior use, marine-grade systems for coastal and marine environments
Lamination is often the better choice — for furniture and high-traffic surfaces, HPL or vinyl lamination provides superior durability with less process complexity than paint
Specify the right board density — higher-density Celuka boards produce better finishing results and should be specified for any application where finish quality is a priority
Fabricators who apply these principles consistently will achieve professional, durable results across every PVC foam board finishing application.
To explore our full range of PVC foam board products suitable for every finishing application, visit our PVC Foam Board category or browse our PVC Sheet collection . Our technical team is available to advise on board specification and surface finishing for your specific application.
No. Standard wall paint (emulsion) is formulated for porous surfaces and does not adhere reliably to PVC foam board. Use a PVC-compatible adhesion primer first, then apply an appropriate topcoat. Without the correct primer, the paint will peel within weeks.
Light sanding with 180–220 grit sandpaper is recommended before priming to improve adhesion. However, sanding alone is not sufficient — always clean with IPA first to remove release agents and contamination. For UV direct printing, do not sand — clean with IPA only.
Two-part polyurethane (2K PU) paint provides the most durable finish for PVC foam board furniture. Apply over a PVC-compatible adhesion primer using spray application. For a more practical alternative, high-quality single-part acrylic paint over adhesion primer performs well for interior furniture applications.
The most common causes are: using the wrong primer (or no primer), inadequate surface cleaning before priming, or applying finish coats before the primer has fully cured. Clean the surface with IPA, use a primer specifically formulated for plastics or non-porous surfaces, and allow full cure time before applying finish coats.
Yes. Self-adhesive vinyl films adhere well to clean PVC foam board surfaces. Clean with IPA before application. Use cast vinyl rather than calendered vinyl for applications involving routed profiles or shaped edges, as cast vinyl conforms better to complex surfaces.
Apply a thin coat of PVC-compatible high-build primer or filler to the routed edge. Allow to cure, sand smooth with 220 grit, and repeat if necessary until the edge surface is closed and smooth. Then apply finish coats as normal. Higher-density Celuka boards produce cleaner routed edges that require less filling.
For exterior and long-term applications, factory-colored board (where the color is integral to the material) is more durable than painted board, as there is no paint film that can peel, chip, or fade. For applications requiring specific colors or finishes not available in factory-colored boards, a well-applied 2K PU paint system provides excellent durability.
Working on a project that requires a high-quality surface finish on PVC foam board?
Jinbao PVC manufactures a comprehensive range of PVC foam board products — including Celuka boards with hard surface skins specifically suited to paint and laminate finishing — across densities from 0.40 to 0.70 g/cm³ and thicknesses from 1 mm to 40 mm. Our technical team can advise on board selection for your specific finishing requirements.
Contact us today to request samples and technical data sheets for your project.
