PVC Foam Board Density Guide: How to Choose the Right Density for Your Application

Walk into any serious conversation about PVC foam board specification and density will come up within the first few minutes. It is the single most important variable that determines how a board performs — more so than thickness, more so than color, and in many cases more so than brand. Yet for buyers who are new to the material, density is also one of the most misunderstood specifications.

The confusion is understandable. PVC foam board is sold across a density range from approximately 0.35 g/cm³ to 0.75 g/cm³, and the difference in performance between the extremes of that range is substantial. A low-density board that is perfectly suitable for a short-term indoor display would be entirely wrong for a kitchen cabinet carcass. A high-density board that delivers excellent results in structural furniture would be unnecessarily heavy and expensive for a hanging exhibition panel.

Making the right density choice requires understanding what density actually is, how it affects the mechanical and surface properties of the board, and how those properties map to the demands of specific applications.

This guide provides a complete reference for buyers, fabricators, and specifiers — covering the science behind density, the performance implications at each density level, and a practical application-by-application specification guide.

What Is PVC Foam Board Density and How Is It Measured?

Density is the mass of material per unit volume, expressed in grams per cubic centimeter (g/cm³) or kilograms per cubic meter (kg/m³). For PVC foam board, density reflects the ratio of solid PVC polymer to the air-filled cells within the foam structure.

A standard solid PVC sheet has a density of approximately 1.40 g/cm³. PVC foam board achieves its lightweight character by introducing a controlled cellular structure during manufacturing — the more cells, and the larger those cells, the lower the resulting density.

How Density Is Controlled During Manufacturing

PVC foam board is produced by extruding a PVC compound containing a chemical blowing agent. As the compound exits the die, the blowing agent decomposes and releases gas, creating the cellular foam structure. The density of the finished board is controlled by:

• the concentration of blowing agent in the compound

• the extrusion temperature and pressure profile

• the cooling rate after extrusion

• the manufacturing process — Celuka or free foam

In Celuka manufacturing, the board surface is cooled rapidly against a calibration sleeve, suppressing foam formation at the surface and creating a denser, harder skin layer. The core remains cellular. This produces a board with a density gradient — denser at the surface, more open-celled in the core.

In free foam manufacturing, the entire cross-section foams more uniformly, producing a more consistent density throughout the board thickness. The surface skin is present but thinner and softer than in Celuka board.

For a detailed comparison of these two manufacturing processes and their effect on board properties, see our guide on Celuka PVC foam board vs free foam board: what's the difference .

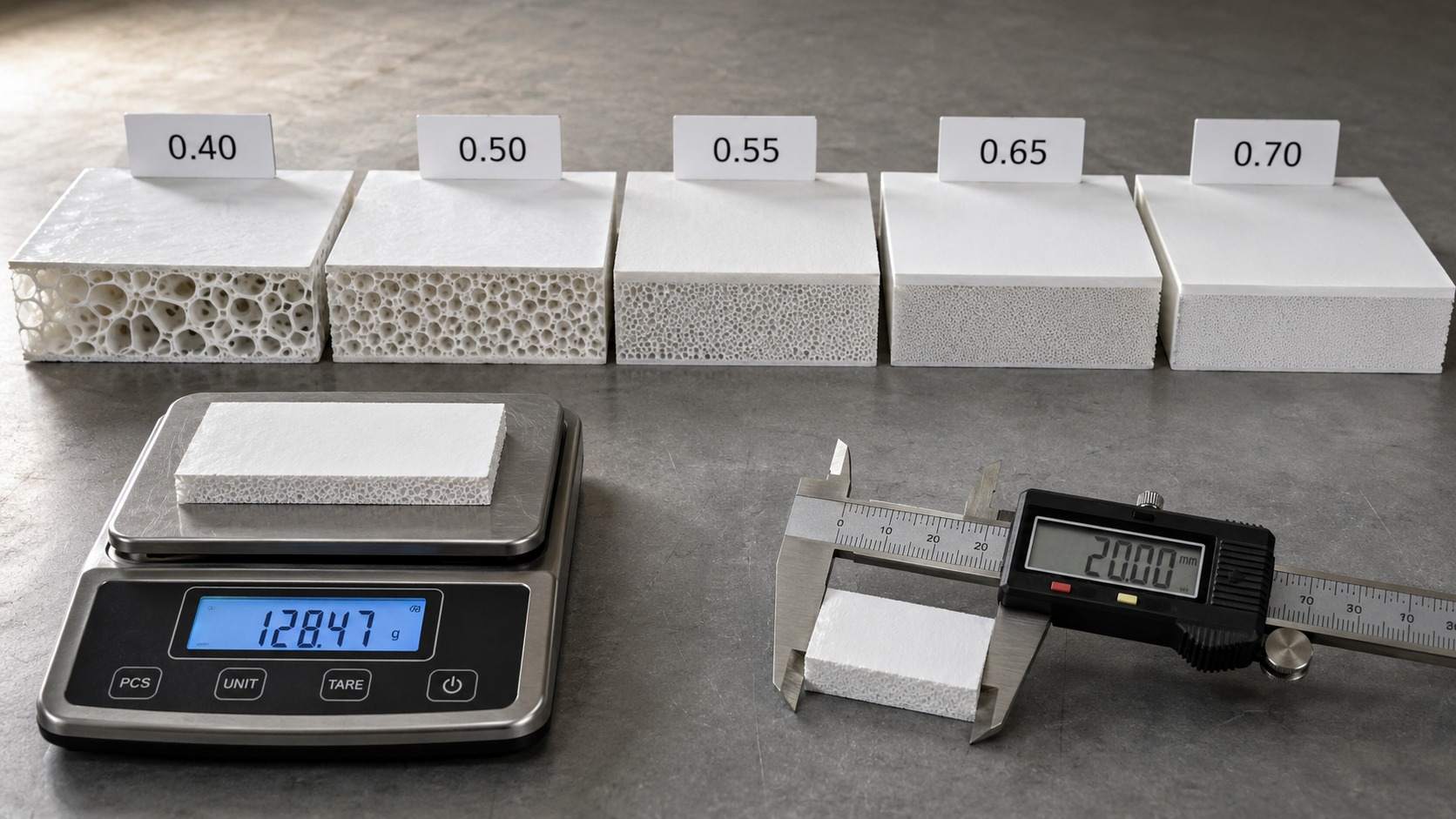

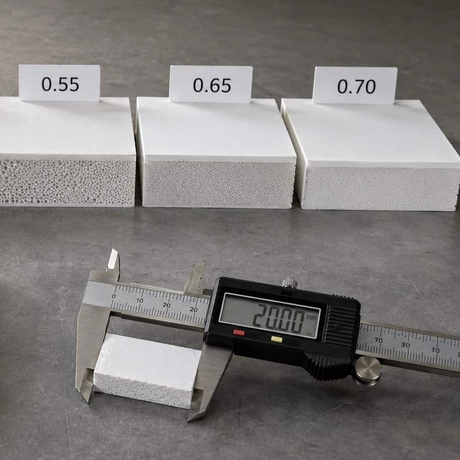

How to Verify Density

Density can be verified by weighing a known volume of board:

Density=Mass (g)/（Length (cm)×Width (cm)×Thickness (cm)Mass (g)）​

For a 1220 × 2440 mm sheet at 10 mm thickness:

• Volume = 122 × 244 × 1 = 29,768 cm³

• A board weighing 14.9 kg = 14,900 g

• Density = 14,900 ÷ 29,768 = 0.50 g/cm³

This simple calculation allows buyers to verify the density of boards received against the manufacturer's specification — a useful quality control step when sourcing from a new supplier.

How Density Affects Board Performance

Density is not just a number — it is a proxy for a whole range of mechanical, surface, and processing properties that determine how the board behaves in use.

Rigidity and Flexural Strength

Higher density boards contain more solid PVC per unit volume, which translates directly into greater rigidity and resistance to bending. This matters in applications where panels must span unsupported distances without visible deflection — cabinet shelves, large signage panels, and structural display elements.

The relationship between density and flexural modulus is approximately linear across the density range used in PVC foam board:

Surface Hardness

The surface hardness of PVC foam board increases with density. A harder surface provides:

• better resistance to indentation and scratching in service

• cleaner routing and machining results with sharper edge definition

• better adhesion for paints, inks, and laminates

• more consistent print quality in direct UV printing applications

Low-density boards have softer surfaces that are more susceptible to indentation from handling, tooling marks during fabrication, and surface damage in service.

Screw and Fastener Holding Strength

As discussed in our guide to bonding and joining PVC foam board , fastener pull-out resistance increases significantly with board density. This is one of the most practically important density-dependent properties for furniture and construction applications, where joints must reliably hold loads over extended periods.

A screw driven into a 0.65 g/cm³ board can hold several times the load of the same screw in a 0.40 g/cm³ board. For applications where mechanical fastening is part of the structural design, density selection is a direct structural decision.

Impact Resistance

Higher density boards absorb impact energy more effectively than lower density boards. In applications where boards may be subject to accidental impacts — workshop environments, retail displays, construction site use — higher density provides better resistance to denting and surface damage.

Thermal Insulation

Lower density boards contain more air per unit volume and therefore provide slightly better thermal insulation than higher density boards. This property is relevant in construction applications where PVC foam board is used as an insulating panel or substrate.

Weight

The most obvious effect of density is weight. For applications where minimizing weight is important — hanging displays, transport-intensive exhibition systems, lightweight partitioning — lower density boards provide a direct advantage.

Weight per square meter at 10 mm thickness across the density range:

For a large exhibition stand with 50 m² of wall panels at 5 mm thickness, the difference between a 0.40 g/cm³ and a 0.60 g/cm³ board is 50 kg of total panel weight — a meaningful difference in freight cost and handling labor.

Cost

Higher density boards require more raw material per unit volume and are more expensive to produce. The price premium for high-density boards is real and should be factored into material selection — but it should be weighed against the performance requirements of the application. Specifying a higher density than the application requires adds cost without adding value; specifying a lower density than the application requires risks performance failure.

The PVC Foam Board Density Spectrum: A Practical Guide

Ultra-Low Density: 0.35–0.40 g/cm³

Boards in this density range are the lightest available and are produced primarily for applications where weight minimization is the overriding priority.

Characteristics:

• very lightweight — minimum freight and handling cost

• flexible — limited rigidity for unsupported spans

• soft surface — susceptible to indentation and scratching

• low fastener holding strength

• lower cost

Suitable applications:

• short-term indoor promotional displays

• ceiling-hung lightweight signage

• backing boards for framed graphics

• applications where the board is fully supported and carries no structural load

Not suitable for:

• furniture or cabinetry

• outdoor applications

• any application requiring screw or fastener connections

• applications where surface durability is important

Standard Display Density: 0.45–0.50 g/cm³

This is the most widely used density range for general display, signage, and exhibition applications. It represents the best balance of weight, cost, and performance for non-structural uses.

Characteristics:

• lightweight with adequate rigidity for standard display applications

• smooth surface suitable for direct UV printing and applied vinyl

• moderate fastener holding strength — adequate for lightweight connections

• good machinability for standard cutting and routing operations

• competitive cost

Suitable applications:

• indoor and short-term outdoor signage panels

• exhibition backdrop panels and graphic displays

• point-of-sale displays

• real estate and event signage

• foam board replacement in display applications requiring greater rigidity

Not suitable for:

• load-bearing furniture or cabinetry

• applications requiring high screw pull-out strength

• long unsupported spans without frame support

• permanent outdoor installations in high-UV environments

Mid-Range Density: 0.50–0.55 g/cm³

Boards in this range bridge the gap between display-grade and furniture-grade material. They are suitable for a wider range of applications than standard display boards while remaining lighter and more cost-effective than high-density boards.

Characteristics:

• good rigidity for moderate span applications

• harder surface with better scratch resistance than lower-density boards

• improved fastener holding strength

• suitable for Celuka manufacturing — harder surface skin available

• moderate cost premium over standard display grade

Suitable applications:

• medium-term outdoor signage

• lightweight shelving and display furniture

• exhibition display furniture and counters for light-duty use

• architectural trim and decorative elements

• applications requiring a balance of weight and structural performance

Furniture and Construction Grade: 0.55–0.65 g/cm³

This density range is the standard specification for PVC foam board used in furniture manufacturing, kitchen cabinetry, bathroom furniture, and construction applications. It provides the combination of rigidity, surface hardness, and fastener holding strength required for structural use.

Characteristics:

• high rigidity — suitable for shelving, cabinet carcasses, and structural panels

• hard surface skin (particularly in Celuka grade) — excellent for painting, laminating, and high-gloss finishing

• good to excellent screw and fastener holding strength

• clean routing and machining results — suitable for detailed profiles and edge work

• heavier than display-grade boards — weight must be considered in design

• higher cost — justified by structural performance

Suitable applications:

• kitchen cabinet carcasses and door panels

• bathroom vanity units and wet area furniture

• retail display fixtures and shop fitting

• permanent outdoor signage and architectural cladding

• marine interior joinery

• construction formwork and shuttering panels

• laboratory and cleanroom furniture

For buyers evaluating PVC foam board for kitchen and bathroom cabinetry specifically, our detailed guide covers the full specification requirements for these demanding applications.

High Density: 0.65–0.75 g/cm³

The highest density PVC foam boards approach the properties of solid PVC sheet while retaining some weight advantage. They are specified for the most demanding structural and industrial applications.

Characteristics:

• maximum rigidity and structural strength in the PVC foam board category

• excellent fastener holding strength — comparable to medium-density wood composites

• very hard surface — maximum resistance to indentation and wear

• excellent machinability — suitable for the most detailed routing and profiling work

• heaviest boards in the range — weight approaches that of MDF at equivalent thickness

• highest cost

Suitable applications:

• heavy-duty industrial and laboratory furniture

• structural architectural elements

• high-traffic retail and commercial installations

• applications requiring maximum surface durability

• thick dimensional elements and sculptural fabrication

• applications where solid PVC sheet would otherwise be specified but weight reduction is beneficial

Application-by-Application Density Specification Guide

The following table consolidates density recommendations across the most common PVC foam board applications:

Common Density Specification Mistakes and How to Avoid Them

Mistake 1: Specifying by Price Alone

The lowest-cost board is always the lowest-density board. Buyers who specify on price alone without considering density often receive boards that are technically within the ordered thickness but perform poorly in their application — insufficient rigidity, poor screw holding, or inadequate surface hardness.

Solution: Always specify density explicitly alongside thickness when placing orders. A specification of "10 mm PVC foam board, density 0.55 g/cm³ minimum" is unambiguous. A specification of "10 mm PVC foam board" leaves density undefined and allows substitution of lower-grade material.

Mistake 2: Over-Specifying Density

Specifying high-density board for applications that do not require it adds cost and weight without adding value. A 0.65 g/cm³ board used as a short-term exhibition backdrop panel is an unnecessary expense.

Solution: Match density to application requirements using the specification guide above. Reserve high-density boards for applications where structural performance genuinely demands them.

Mistake 3: Assuming All Boards of the Same Thickness Have the Same Density

PVC foam board is sold in standard thicknesses, but the same thickness is available across a wide density range. Two boards that are both 10 mm thick may have densities of 0.40 g/cm³ and 0.65 g/cm³ respectively — with dramatically different performance characteristics.

Solution: Always confirm density with the supplier, not just thickness. Request material data sheets that confirm density for each product.

Mistake 4: Not Verifying Density on Receipt

Suppliers occasionally ship boards that do not meet the specified density, either through manufacturing variation or deliberate substitution of lower-grade material. Without verification on receipt, this may not be discovered until the boards fail in service.

Solution: Implement a simple incoming quality control check using the weight-based density calculation described earlier in this guide. Weigh a sample of boards from each delivery and calculate density against the known dimensions.

How to Specify Density When Ordering

When placing an order for PVC foam board, include the following in your specification:

1. Thickness — in millimeters, with tolerance (e.g., 10 mm ± 0.2 mm)

2. Density — in g/cm³, with minimum value (e.g., 0.55 g/cm³ minimum)

3. Board type — Celuka or free foam, if relevant to your application

4. Sheet dimensions — standard or custom

5. Color — white, black, or other if available

6. Surface finish — smooth, matte, or textured if relevant

7. Quantity — in sheets or square meters

A complete specification example:

PVC foam board, Celuka, white, 10 mm thickness (±0.2 mm), density 0.55 g/cm³ minimum, sheet size 1220 × 2440 mm, smooth surface finish, quantity 200 sheets.

This level of specification leaves no ambiguity and provides a clear basis for quality verification on receipt.

For guidance on evaluating suppliers and ensuring consistent quality across orders, our guide to choosing a reliable PVC foam board manufacturer covers the full supplier evaluation process.

For a complete reference on standard sizes and thicknesses available across the product range, see our guide to PVC foam board dimensions, standard sizes, and thicknesses .

Conclusion

Density is the most important specification variable in PVC foam board selection, and understanding it is the difference between a material that performs exactly as required and one that fails to meet the demands of the application.

The key takeaways from this guide:

• Density determines performance — rigidity, surface hardness, fastener holding strength, weight, and cost all scale with density

• Match density to application — use the specification tables in this guide to identify the right density range for each use case

• Specify density explicitly when ordering — do not leave it undefined or allow substitution of lower-grade material

• Verify density on receipt — a simple weight-based calculation confirms whether delivered boards meet specification

• Avoid both under- and over-specification — the right density is the one that meets the application requirements at the lowest cost and weight

Buyers and fabricators who apply these principles will consistently make better material decisions, reduce waste from specification errors, and deliver better results in every application.

To explore our full range of PVC foam board products across the complete density spectrum, visit our PVC Foam Board category or browse our PVC Sheet collection . Our technical team can advise on density selection for any specific application.

FAQ

What density of PVC foam board should I use for kitchen cabinets?

For kitchen cabinet carcasses and structural panels, a density of 0.55–0.65 g/cm³ is recommended. This range provides the screw holding strength, rigidity, and surface hardness required for furniture applications. Lower-density boards do not provide adequate fastener holding for cabinet construction.

What is the difference between 0.45 g/cm³ and 0.60 g/cm³ PVC foam board?

The 0.60 g/cm³ board is approximately 33% denser, significantly more rigid, harder on the surface, and has much better screw holding strength. It is also heavier and more expensive. The 0.45 g/cm³ board is better suited to lightweight display applications; the 0.60 g/cm³ board is appropriate for structural furniture and permanent signage.

How can I verify the density of PVC foam board I receive?

Weigh a sheet of known dimensions and calculate: Density = Mass (g) ÷ Volume (cm³). Compare the result to the specified density. This simple check can be performed with a standard warehouse scale and a tape measure.

Is higher density always better?

No. Higher density boards are heavier and more expensive. For applications where structural performance is not required — such as lightweight exhibition displays or short-term promotional signage — lower-density boards are the better choice. Specify the density that meets the application requirements, not the highest available.

Does density affect how well PVC foam board can be printed on?

Yes. Higher-density boards, particularly Celuka grades, have a harder, more consistent surface skin that produces better results in direct UV printing. Lower-density boards may have a softer surface that can cause inconsistent ink adhesion. For critical print applications, specify a minimum density of 0.50 g/cm³ and prefer Celuka board.

Can I mix different densities in the same project?

Yes, and this is often the most cost-effective approach. Use lower-density boards for non-structural graphic panels and higher-density boards for structural elements, furniture components, and areas requiring screw connections. This optimizes both cost and performance across the project.
