How To Choose Best PVC Cabinet Board Density: A Complete 0.5 Vs 0.7 Guide

Here is the engineering breakdown of the two most popular PVC board densities for furniture manufacturing.

Context & Overview

In the world of waterproof cabinetry, PVC Cabinet Boards are the gold standard. But not all boards are created equal. The most common question we get from cabinet makers is: "Should I use 0.5 or 0.7 density?"

The answer isn't just about price; it's about structural integrity vs. weight optimization.

In this guide, we analyze the technical differences between 0.5g/cm³ and 0.7g/cm³ densities. We will explore their screw holding power, flexural strength, and why a "Hybrid Approach" might be your most profitable strategy.

The 0.5 Density: The Lightweight Champion

Best For: Cabinet Doors, Drawer Fronts, Upper Cabinets, Decorative Panels.

The 0.5g/cm³ density board is the industry standard for non-structural components. It is engineered to be lightweight and cost-effective while maintaining complete water resistance.

Why Choose 0.5 Density?

1. Weight Reduction: At just 7.5 kg/m² (for 16mm thickness), it is 40% lighter than the 0.7 version. This significantly reduces stress on cabinet hinges and makes installation easier for upper wall cabinets.

2. Cost Efficiency: It is generally 20-25% cheaper than high-density boards, making it ideal for large surface areas like doors where screw holding is less critical.

3. Surface Finish: It still offers a smooth, paintable surface perfect for laminating or UV printing.

⚠️ Limitation: With a screw holding force of 800–1000N, it is not recommended for heavy load-bearing shelves or attaching heavy hardware directly without reinforcement.

The 0.7 Density: The Structural Powerhouse

Best For: Base Cabinet Carcasses, Shelves, Drawer Boxes, Commercial Furniture.

When strength is non-negotiable, the 0.7g/cm³ density board is the professional's choice. It feels and works more like high-quality wood or MDF but with zero risk of water damage.

Why Choose 0.7 Density?

1. Superior Screw Holding: With a holding force of 1200–1500N, screws bite tight and stay tight. This is crucial for attaching drawer slides, heavy hinges, and connecting the main cabinet box (carcass).

2. High Load-Bearing: With a flexural strength of 18–22 MPa, these boards won't sag under the weight of heavy pots, pans, or stacks of ceramic plates.

3. Impact Resistance: The denser core resists dents and dings better in high-traffic commercial environments.

Technical Comparison: 0.5 vs 0.7

To help you make a data-driven decision, here is the side-by-side comparison of Jinbao PVC Cabinet Boards.

The "Hybrid Approach": Maximize Performance & Profit

Smart manufacturers don't just pick one; they use both. By combining densities, you can build a cabinet that is both strong and cost-effective.

The Winning Formula:

• Use 0.7 Density for the "Skeleton": Build the cabinet box (carcass), shelves, and bottom panels with 0.7 boards. This ensures the structure is rigid and screws for rails/hinges never loosen.

• Use 0.5 Density for the "Skin": Use 0.5 boards for the doors, drawer fronts, and back panels. This keeps the overall weight down (protecting hinges) and lowers the total material cost.

Conclusion

Choosing between 0.5 and 0.7 density is not about which is "better"—it is about which is "right for the job."

• Need strength for shelves? Go with 0.7.

• Need lightweight economy for doors? Go with 0.5.

At Jinbao, we produce both densities using 100% virgin PVC to ensure consistent quality and SGS-certified safety. Ready to test the difference? Request a sample pack from our PVC Cabinet Board Collection today.

Frequently Asked Questions (FAQ)

Q1: Can I use 0.5 density for kitchen shelves?

A: For light items (cereal boxes, plastics), yes. However, for heavy items like canned goods or dinnerware, 0.5 density may sag over time. We strongly recommend 0.7 density for all horizontal shelving.

Q2: Is there a visual difference between the two densities?

A: Visually, they look almost identical with a smooth, white surface. The difference is felt in the weight and the hardness when you press your fingernail into the core (0.7 is much harder).

Q3: Do I need special screws for PVC boards?

A: Standard wood screws work well, but coarse-thread screws provide the best bite. For 0.5 density, ensure you don't over-torque the screw, or you might strip the hole.

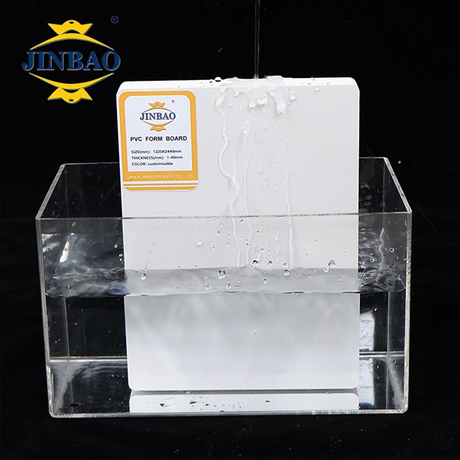

Q4: Are both densities equally waterproof?

A: Yes! The density refers to the core structure, but the material is chemically identical (PVC). Both are 100% waterproof, mold-proof, and termite-proof, making them ideal for Bathroom PVC Cabinets.
