Outdoor signage is one of the most demanding applications for any board material. It must withstand direct sunlight, rain, temperature fluctuations, wind loading, and in many climates, humidity or freezing conditions — all while maintaining a clean, professional appearance that represents a brand or communicates information clearly.
For sign makers, display fabricators, and marketing professionals sourcing materials for outdoor applications, PVC foam board is one of the most widely specified options in the industry. But not all PVC foam board performs equally outdoors. The grade of board, its density, surface treatment, and formulation all determine how well it holds up over months and years of outdoor exposure.
This article provides a detailed, practical guide to using PVC foam board for outdoor signage — covering material performance, grade selection, printing compatibility, installation considerations, and how to extend the working life of outdoor PVC displays.
Before evaluating PVC foam board specifically, it is worth understanding what makes outdoor signage applications uniquely demanding compared to indoor use.
Ultraviolet radiation from sunlight is the primary cause of material degradation in outdoor applications. UV exposure causes:
surface yellowing or discoloration
loss of surface gloss
brittleness and micro-cracking over time
fading of printed graphics
The rate of UV degradation depends on geographic location, board orientation, and whether the board has UV stabilizers in its formulation.
Outdoor boards are exposed to rain, condensation, and in some climates, standing water or flooding. Materials that absorb moisture will:
swell and warp
lose structural rigidity
develop surface blistering
allow adhesive layers to delaminate
PVC foam board's closed-cell structure gives it inherent moisture resistance, but the quality of this resistance varies between product grades.
In most climates, outdoor materials experience significant daily and seasonal temperature variation. Repeated expansion and contraction cycles can cause:
warping in boards with poor dimensional stability
cracking at fastener points
delamination of surface films or laminates
Outdoor signs are subject to wind pressure, particularly larger format displays. A board that is too thin or too low in density may flex excessively, causing fatigue cracking or failure at mounting points.
PVC foam board has several inherent properties that make it well-suited to outdoor signage applications:
PVC is a hydrophobic material. Unlike wood-based boards such as MDF or plywood, PVC foam board does not absorb water. This means it will not swell, delaminate, or rot when exposed to rain or humidity. For outdoor applications in tropical climates, coastal environments, or regions with heavy seasonal rainfall, this is a critical advantage.
PVC foam board resists a wide range of chemicals, including cleaning agents, mild acids, and atmospheric pollutants. This makes it suitable for outdoor environments where boards may be exposed to industrial emissions, salt air, or cleaning chemicals.
High-quality PVC foam board maintains its shape and dimensions across a reasonable temperature range. However, PVC does have a higher coefficient of thermal expansion than metal or glass, which means installation design must account for some degree of expansion and contraction.
PVC foam board can be routed, cut, drilled, and shaped using standard woodworking tools, making it practical for sign fabricators who need to produce custom shapes, channel letters, or dimensional signage elements.
Not all PVC foam board is suitable for outdoor signage. The key variables that determine outdoor performance are:
Density is one of the most important factors for outdoor durability. Higher density boards offer:
greater rigidity and resistance to wind loading
better screw and fastener holding strength
more durable edges that resist chipping during installation
improved surface hardness for outdoor printing applications
For outdoor signage, a density of 0.55 g/cm³ or higher is generally recommended. Boards in the 0.6–0.7 g/cm³ range offer the best balance of weight and structural performance for most outdoor sign applications.
Very low-density boards (below 0.45 g/cm³) are better suited to indoor display applications and should not be used for permanent outdoor installations.

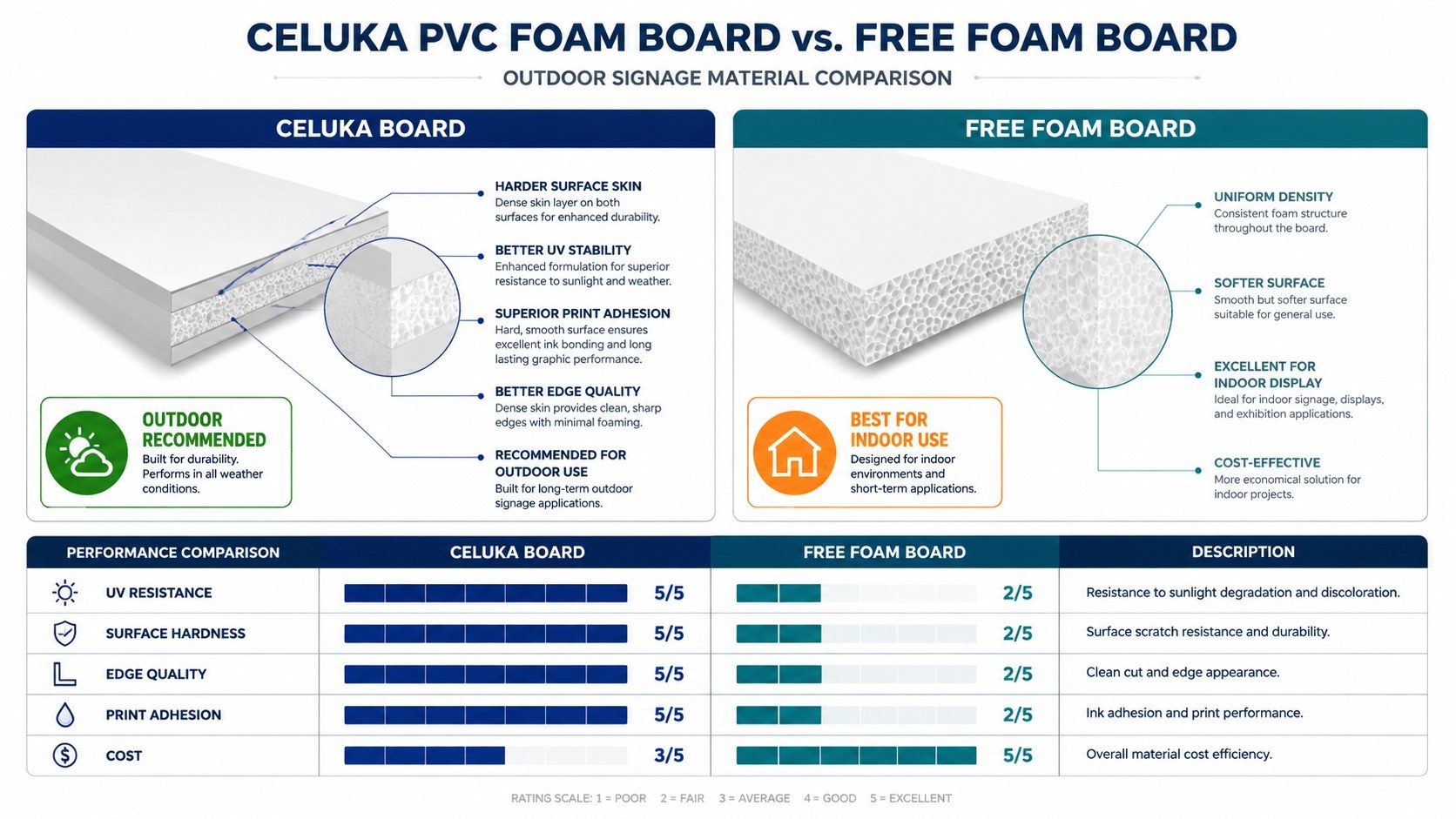

The manufacturing process significantly affects outdoor suitability:
Celuka PVC foam board is produced using a process that creates a denser, harder skin on the surface of the board. This skin provides:
better resistance to surface abrasion
improved UV stability
harder surface for direct printing or painting
better edge quality for routing and cutting
Free foam board has a more uniform density throughout the cross-section but typically has a softer surface skin. While free foam board is excellent for indoor display and signage, Celuka board is generally preferred for permanent outdoor installations where surface durability is important.
For a detailed comparison of these two board types, refer to our guide on <a href="#">Celuka vs free foam board: which is right for your application</a>.
High-quality PVC foam boards formulated for outdoor use contain UV stabilizers in the compound. These additives absorb or reflect UV radiation before it can degrade the polymer chains, significantly extending the outdoor service life of the board.
When sourcing PVC foam board for outdoor signage, always ask the manufacturer whether their product contains UV stabilizers and request test data on UV resistance performance.
Thickness selection for outdoor signage depends on:
sign dimensions and aspect ratio
mounting method (frame-mounted, post-mounted, or free-standing)
wind load requirements in the installation location
General guidance for outdoor PVC foam board signage:
Sign Size | Recommended Thickness |
Small signs up to 600 × 900 mm | 5 mm – 8 mm |
Medium signs up to 1200 × 2400 mm | 10 mm – 15 mm |
Large format signs above 1200 × 2400 mm | 15 mm – 20 mm |
Dimensional or structural elements | 20 mm and above |
For detailed guidance on thickness selection across different applications, our complete guide to PVC foam board dimensions, standard sizes, and thicknesses provides a comprehensive reference.
PVC foam board is widely used as a substrate for digitally printed outdoor graphics. Understanding the printing requirements ensures the best results.
UV flatbed printing directly onto PVC foam board is the most common method for outdoor signage production. Key considerations include:
Surface preparation: The board surface should be clean, dry, and free from dust or oils before printing.
Ink adhesion: UV-curable inks bond well to PVC foam board surfaces, particularly on Celuka boards with harder skin layers.
Ink flexibility: For outdoor applications, use inks formulated with UV resistance and flexibility to accommodate thermal expansion of the board.
For high-quality outdoor graphics, digitally printed vinyl laminates applied to PVC foam board offer excellent results:
Cast vinyl is preferred over calendered vinyl for outdoor applications due to its better conformability and dimensional stability over time.
Overlaminate films with UV protection extend the life of printed graphics significantly.
Adhesion: Ensure the laminate adhesive is rated for outdoor use and compatible with PVC substrates.
PVC foam board can be painted directly for outdoor signage applications. Use paints specifically formulated for PVC or plastic substrates:
Apply a suitable primer before painting to improve adhesion.
Use exterior-grade paints with UV resistance.
Allow adequate curing time before outdoor installation.

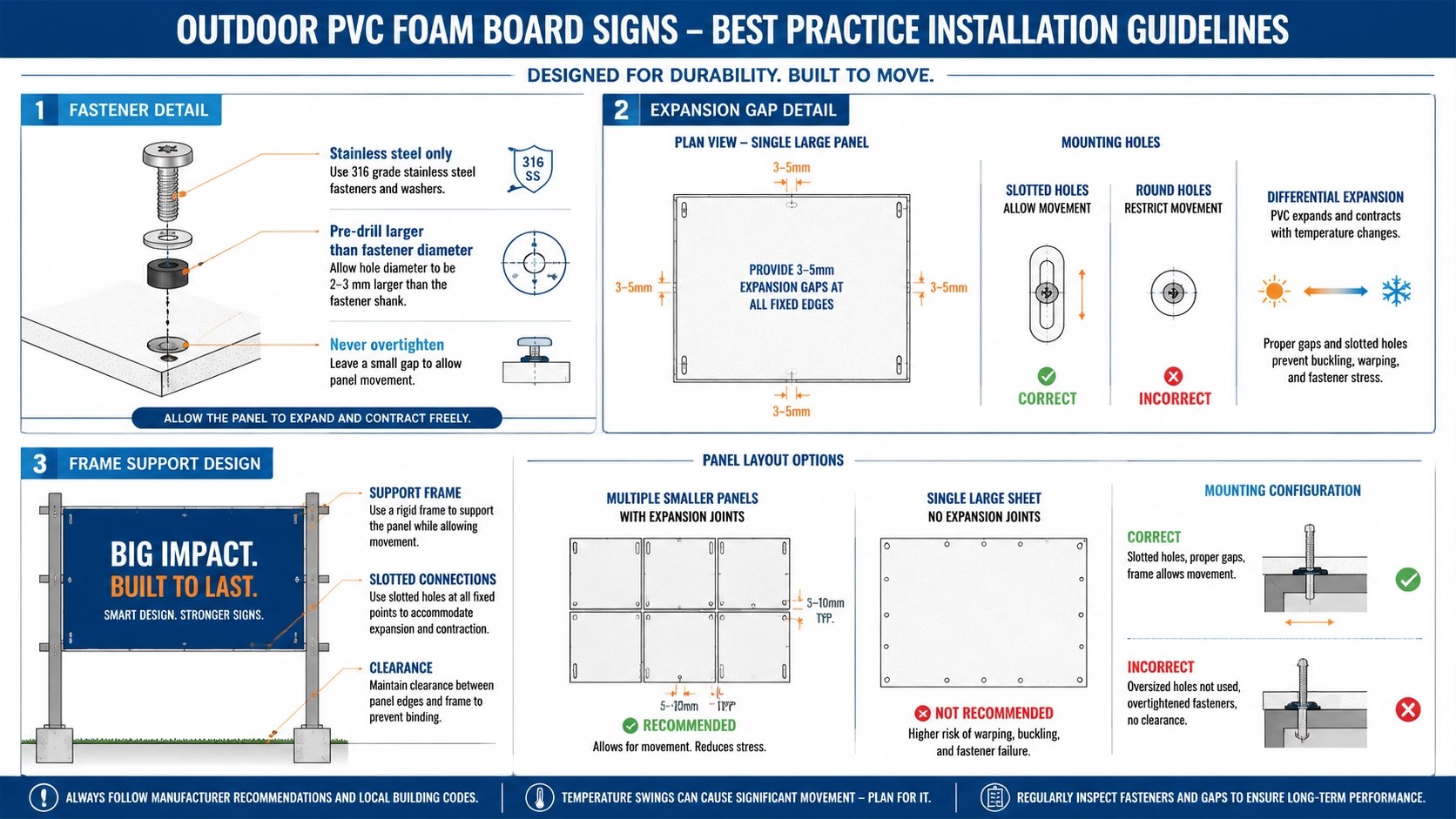

Proper installation is as important as material selection for outdoor signage longevity.
Use stainless steel or galvanized fasteners to prevent corrosion staining on the board surface.
Pre-drill holes slightly larger than the fastener diameter to allow for thermal expansion.
Do not overtighten fasteners, as this can cause stress cracking around mounting points.
PVC foam board expands and contracts with temperature changes. For large format outdoor signs:
Leave a minimum expansion gap of 3–5 mm at all fixed edges.
Use slotted mounting holes rather than round holes for large panels to allow movement.
Avoid rigid adhesive bonding of large PVC panels to fixed substrates without accounting for differential expansion.
For large outdoor signs:
Design support frames that allow the PVC panel to move slightly without buckling.
Avoid designs that constrain the panel rigidly at multiple points across its full surface.
For very large panels, consider using multiple smaller panels with expansion joints rather than a single large sheet.
In high-humidity or coastal environments, sealing the edges of PVC foam board panels can provide additional protection:
Apply a compatible edge sealant or paint to all cut edges.
This is particularly important for lower-density boards where the foam core is more exposed at cut edges.
The service life of PVC foam board in outdoor signage depends on multiple factors:
Factor | Impact on Service Life |
Board density | Higher density = longer service life |
UV stabilizer content | Boards with UV stabilizers last significantly longer |
Climate | Tropical and high-UV climates accelerate degradation |
Print and laminate quality | Quality overlaminates protect the board surface |
Installation quality | Proper fastening and expansion allowance prevents mechanical failure |
Maintenance | Regular cleaning extends appearance and performance |
Under typical conditions in temperate climates, high-quality UV-stabilized PVC foam board used for outdoor signage can be expected to maintain acceptable appearance and structural performance for 3 to 7 years depending on the above factors.
In high-UV environments such as tropical or desert climates, service life may be shorter, and the use of protective overlaminates or UV-resistant coatings is strongly recommended.
Regular maintenance extends the service life of outdoor PVC foam board signage:
Clean the sign surface periodically with a mild detergent solution and a soft cloth or sponge.
Rinse thoroughly with clean water after washing.
Avoid abrasive cleaners or scrubbing pads that can scratch the surface.
Remove bird droppings, tree sap, or industrial deposits promptly, as these can stain or etch the surface if left for extended periods.
Inspect outdoor signs periodically for:
signs of surface yellowing or discoloration
edge delamination or moisture ingress
cracking around fastener points
lifting or bubbling of printed laminates
Addressing minor issues early prevents more significant deterioration.
PVC foam board signs that have faded or discolored can sometimes be refurbished:
Lightly sand the surface and repaint with exterior-grade PVC-compatible paint.
Replace lifted or bubbling laminates before moisture ingress causes board damage.
Replace fasteners that show signs of corrosion before they stain the board surface.
While PVC foam board is an excellent material for many outdoor signage applications, there are situations where alternative materials may be more appropriate:
Very long-term permanent installations (10+ years) in high-UV environments may benefit from aluminium composite panel (ACP) or high-pressure laminate (HPL) substrates.
Structural signage that must bear significant loads should use engineered materials with certified structural ratings.
High-impact environments such as traffic signs or safety barriers require materials with specific impact resistance ratings.
Understanding the limitations of PVC foam board helps buyers and fabricators make the right material choice for each specific application.
PVC foam board is one of the most practical and widely used materials for outdoor signage. Its moisture resistance, machinability, print compatibility, and competitive cost make it an excellent choice for a broad range of outdoor display applications.
To achieve the best outdoor performance:
Select a high-density board (0.55 g/cm³ or above) with UV stabilizers in the formulation.
Choose Celuka board for applications requiring maximum surface durability.
Select the correct thickness for the sign dimensions and mounting method.
Use UV-resistant inks or overlaminates for printed graphics.
Follow proper installation practices that account for thermal expansion.
Maintain signs with regular cleaning and inspection.
By making informed material and installation decisions, sign makers and buyers can ensure that outdoor PVC foam board signage delivers reliable performance and professional appearance throughout its intended service life.
To explore our range of PVC foam board products suitable for outdoor signage applications, visit our PVC Foam Board category or browse our PVC Sheet collection for additional options.
Yes, high-density UV-stabilized PVC foam board is suitable for outdoor signage. For permanent installations, choose boards with a density of 0.55 g/cm³ or above and confirmed UV stabilizer content. Expected service life in temperate climates is typically 3 to 7 years depending on conditions and maintenance.
Celuka board has a denser, harder surface skin produced during manufacturing, which provides better UV resistance, surface durability, and print adhesion. For permanent outdoor installations, Celuka board is generally preferred over free foam board.
The most common methods are UV flatbed direct printing and application of digitally printed vinyl laminates. For outdoor applications, use UV-resistant inks and consider applying a UV-protective overlaminate to extend graphic life.
Use stainless steel or galvanized fasteners. Pre-drill holes slightly larger than the fastener diameter to allow for thermal expansion. Do not overtighten. For large panels, use slotted mounting holes to allow movement.
Under typical temperate climate conditions, high-quality UV-stabilized PVC foam board can maintain acceptable performance for 3 to 7 years. In high-UV or tropical climates, service life may be shorter without additional UV protection measures.
Yes. Use a PVC-compatible primer followed by exterior-grade paint with UV resistance. Allow adequate curing time before outdoor installation.
