Views: 0 Author: Alan FAN Publish Time: 2026-03-10 Origin: Jinbao PVC
PVC foam board outperforms plywood in moisture resistance, chemical durability, and longevity—lasting 15–20 years outdoors vs plywood's 5–10 years. While plywood has lower upfront costs, PVC foam board offers better long-term value with minimal maintenance. Choose PVC for outdoor signage, wet environments, and chemical exposure. Choose plywood for structural applications requiring screw-holding strength.
This article is for construction contractors, signage professionals, furniture manufacturers, and procurement managers evaluating material options. After manufacturing PVC foam boards for 28 years and working with plywood alternatives, I understand the real-world performance differences that specification sheets don't reveal.

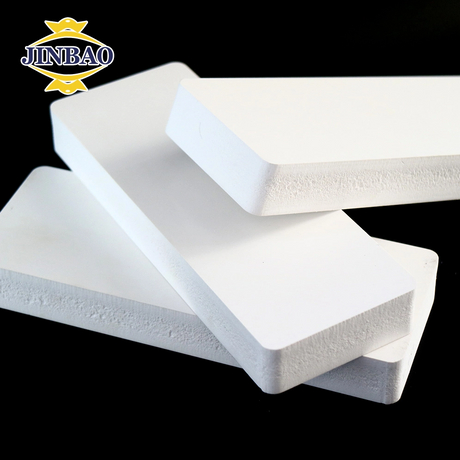

PVC (Polyvinyl Chloride) foam board is a lightweight, rigid plastic material manufactured through extrusion. Its cellular structure provides excellent strength-to-weight ratios while maintaining waterproof properties. Key specs: density range 0.35–0.9g/cm³, weight 40–60% lighter than equivalent plywood, closed-cell structure impervious to water.
At Jinbao PVC, we manufacture PVC foam boards from 0.35g/cm³ for lightweight applications to 0.9g/cm³ for heavy-duty industrial use.
Plywood is an engineered wood product from thin layers of wood veneer glued together. Density range: 0.5–0.8g/cm³. Natural material subject to moisture and pest damage, graded A to D.
Moisture Resistance: PVC foam board's closed-cell structure makes it completely waterproof—it doesn't absorb moisture, swell, or delaminate. Standard plywood absorbs moisture, causing warping, delamination, and mold growth. Even marine-grade plywood absorbs water over time. Winner: PVC Foam Board.
UV and Weather Resistance: Our PVC foam boards incorporate UV stabilizers tested for 3,000+ hours of accelerated weathering, providing 10+ years of color stability and 15–20 year outdoor lifespan (-20°C to +60°C range). Plywood lasts only 5–10 years outdoors even with regular maintenance. Winner: PVC Foam Board.
Chemical Resistance: PVC's non-porous surface resists chemicals, oils, and stains. Plywood's porous surface absorbs stains and requires sealing. Winner: PVC Foam Board.
Mechanical Strength: PVC has flexural strength of 15–25 MPa. Plywood has 30–50 MPa with superior screw-holding from wood fiber structure. Winner: Plywood—for structural applications.
Initial material cost—PVC is higher: 3mm PVC 8–12; 10mm PVC 25–35.
10-Year Total Cost of Ownership (outdoor signage example): PVC Foam Board 45 material + 5 maintenance + 175 total (25 install + 55 replacement). Winner: PVC Foam Board on lifecycle cost.
Signage and Display: PVC foam board is the clear choice—lightweight, weatherproof, excellent printability. Use 3–5mm for indoor, 5–10mm for outdoor. Plywood works for temporary indoor displays.
Construction: PVC suits wall cladding, ceiling panels, decorative trim, and concrete formwork (20–30 uses). Plywood required for structural sheathing, subflooring, heavy-cycle formwork (50–100 uses).
Furniture: PVC excels for cabinet doors, bathroom vanities, outdoor furniture—waterproof and termite-proof. Plywood suits cabinet boxes where structural strength is critical.
Marine Environments: PVC is impervious—no rot, no mold. Ideal for boat interiors, dock components, pool surrounds.
PVC Foam Board: Recyclable, no deforestation, high longevity reduces replacement. Plywood: Renewable resource, biodegradable, lower carbon footprint, FSC-certified options available.
Choose PVC Foam Board: moisture exposure, long-term value priority, low maintenance required, weight reduction needed, chemical exposure, termite-prone areas.
Choose Plywood: structural load-bearing required, heavy fixtures with screw holding, lower initial budget, dry interior controlled environments.
Can PVC foam board be painted? Yes—light sanding with 220-grit plus adhesion promoter ensures excellent bonding. Latex, acrylic, and oil-based paints all work.
Is PVC strong enough for shelving? For light to medium loads yes—10mm supports 15–20 kg per linear meter. Use aluminum reinforcement or 15–19mm thickness for heavy loads.
Better for coastal outdoor signs? PVC is significantly better. Salt air corrodes plywood fasteners. Recommend 0.6g/cm³ density or higher for windy coastal conditions.
Fire ratings? PVC foam board is self-extinguishing (UL94 V-0). Plywood is combustible unless fire-retardant treated. Verify local code compliance.
PVC foam board excels in moisture resistance, longevity, and low maintenance. For outdoor signage, wet environments, and chemical resistance, it is the clear choice. Plywood remains strong for structural applications and dry interior uses.
At Jinbao PVC, our 28 years of manufacturing experience ensures consistent quality. Contact us for free samples and technical consultation to compare materials for your specific application.
