How to Cut and Machine PVC Foam Board: Tools, Techniques, and Best Practices

PVC foam board is widely regarded as one of the most fabricator-friendly panel materials available. It cuts cleanly, routes precisely, and machines without the dust hazards associated with MDF or the tool wear associated with aluminium composite panel. But "fabricator-friendly" does not mean "fabricator-proof." The wrong blade, the wrong feed rate, or the wrong technique will produce results that range from mildly disappointing to completely unusable — melted edges, chipped surfaces, delaminated skins, or dimensional inaccuracy that makes assembly impossible.

Getting consistently good results from PVC foam board requires understanding how the material responds to different cutting methods, what tool geometry and cutting parameters produce clean edges, and how the material's density and thickness affect the approach. A 3 mm display board cut with a craft knife requires a completely different technique from a 25 mm furniture-grade Celuka board routed on a CNC machine. Both are PVC foam board, but the fabrication approach is not the same.

This guide covers the full range of cutting and machining methods for PVC foam board — from hand tools through table saws, circular saws, band saws, and CNC routing — with specific guidance on tool selection, cutting parameters, and the techniques that consistently produce professional results.

How PVC Foam Board Responds to Cutting

Before selecting a cutting method, it helps to understand the material's behavior under tooling.

The Foam Core and Skin Structure

PVC foam board consists of a cellular foam core with a denser skin layer on each face. This structure means the tool encounters two different material conditions in a single cut:

• the skin layer is harder and more homogeneous — it cuts cleanly when the tool is sharp and the cutting geometry is correct

• the foam core is softer and more cellular — it is more susceptible to tearing if the tool is blunt or the cutting speed is wrong

In higher-density boards (0.55 g/cm³ and above), the difference between skin and core is less pronounced, and the core cuts more cleanly. In lower-density boards, the core is more open-celled and requires more care to avoid tearing.

Thermal Sensitivity

PVC begins to soften at approximately 60°C and melts at higher temperatures. This is the most important material characteristic for cutting and machining. Any cutting method that generates excessive heat — through friction, high feed rates, or blunt tooling — will cause the PVC to melt rather than cut. Melted PVC re-solidifies as it cools, producing:

• rough, irregular edges with re-solidified material

• material welded to the cutting tool

• dimensional inaccuracy as the material moves during cutting

The solution in every case is the same: use sharp tools, maintain appropriate cutting speeds and feed rates, and remove heat from the cutting zone.

Chip Formation

Unlike metal, which produces continuous chips, PVC foam board produces small, discrete chips during cutting. These chips should be evacuated from the cutting zone promptly — accumulated chips can re-melt from cutting heat and deposit on the cut edge. Good dust extraction is as important for cut quality as it is for workshop cleanliness.

Hand Cutting Methods

Craft Knife and Straight Edge

For thin boards up to 5 mm, a sharp craft knife and metal straight edge is the most practical cutting method for straight cuts in workshop and site conditions.

Technique:

1. Mark the cut line clearly on the board surface

2. Clamp or hold a metal straight edge firmly along the cut line

3. Score the surface skin with firm, consistent pressure — do not attempt to cut through in one pass

4. Make 3–5 progressive passes, increasing depth with each pass

5. For boards up to 3 mm, snap the board along the scored line after cutting through the skin on both faces

6. For boards 4–5 mm, cut through completely with progressive passes

Key points:

• Use a fresh blade — a blunt craft knife tears rather than cuts the PVC skin

• Replace blades frequently; PVC dulls blades faster than paper or card

• Always use a metal straight edge — a plastic or timber straight edge will be cut by the knife and produce an inaccurate line

• Do not attempt to cut through in a single heavy pass — this produces a ragged edge and is dangerous

Hand Saw

A fine-tooth hand saw can be used for straight cuts in boards up to approximately 15 mm thickness, though the results are generally inferior to power tool methods.

Blade selection: Use a saw with 10–14 teeth per inch (TPI). Finer teeth produce smoother cuts but cut more slowly. Coarser teeth cut faster but leave a rougher edge.

Technique:

• Start the cut with light strokes to establish the kerf before applying full cutting pressure

• Maintain a consistent cutting angle

• Support the offcut to prevent the board from splitting at the end of the cut

Hand sawing is suitable for site work and occasional cuts but is not practical for production fabrication.

Scoring and Snapping

For thin boards (3–5 mm) and straight cuts only, scoring and snapping is a fast and effective method:

1. Score both faces of the board along the cut line using a sharp craft knife and straight edge

2. Place the scored line over a straight edge or table edge

3. Apply firm downward pressure to snap the board along the scored line

This method produces a clean, straight edge on thin boards and requires no power tools. It is not suitable for curved cuts, thick boards, or boards that will be visible at the cut edge without further finishing.

Power Saw Cutting

Circular Saw

A circular saw is the most common power tool used for straight cuts in PVC foam board across a wide thickness range.

Blade selection — the most important variable:

Key parameters:

• Blade speed: Standard circular saw speeds (4,000–5,500 RPM) are appropriate. Do not reduce blade speed.

• Feed rate: Maintain a steady, consistent feed rate. Too slow generates heat from friction; too fast causes chipping and blade deflection.

• Blade depth: Set the blade to protrude no more than 5–10 mm below the board surface. Excessive blade depth increases vibration and reduces cut quality.

• Direction: Always cut with the good face of the board facing up when using a circular saw, as the blade cuts on the upstroke and any chipping occurs on the underside.

Melting at the cut edge: If the cut edge shows signs of melting — glazed appearance, re-solidified material — the blade is blunt, the feed rate is too slow, or the blade tooth count is too low. Replace the blade or increase feed rate.

Table Saw

A table saw with a fine-tooth TCT blade produces the most accurate and consistent straight cuts in PVC foam board for production fabrication.

Setup:

• Use a fine-tooth TCT blade (80–100 teeth for a 250 mm blade)

• Set the blade height to protrude 5–10 mm above the board surface

• Use a fence for consistent rip cuts; use a mitre gauge for crosscuts

• Feed the board at a steady, consistent rate — do not pause mid-cut

Face direction: On a table saw, the blade cuts on the downstroke, so chipping occurs on the top face. Place the good face of the board face-down when cut edge appearance on the top face is critical.

Dust extraction: Connect the table saw to dust extraction. PVC chips accumulate quickly and can interfere with the fence and blade if not removed.

Jigsaw

A jigsaw is the practical choice for curved cuts and internal cutouts in PVC foam board.

Blade selection:

• Use a fine-tooth blade designed for plastics or non-ferrous metals — typically 10–14 TPI with a reverse-tooth or modified geometry

• Avoid coarse wood-cutting blades, which cause chipping

• Plastic-cutting jigsaw blades with a slight reverse tooth angle produce the cleanest results on PVC foam board

Technique:

• Use the orbital action setting at zero or minimum — orbital action increases cutting speed but reduces edge quality in PVC

• Maintain a steady feed rate

• For internal cutouts, drill a pilot hole at the start point before inserting the jigsaw blade

Limitation: Jigsaw cuts in PVC foam board are rarely as clean as circular saw or CNC router cuts. For cut edges that will be visible in the finished piece, plan for additional finishing work after jigsaw cutting.

Band Saw

A band saw with a fine-tooth blade is excellent for curved cuts in thicker PVC foam board (15 mm and above) and produces cleaner results than a jigsaw for most curved work.

Blade selection: Use a 6–10 TPI blade. Finer blades produce smoother cuts but are more susceptible to deflection in thick material.

Technique:

• Feed the board at a steady rate — do not force the cut

• For tight curves, make relief cuts from the edge of the board to the cut line before cutting the curve, allowing the waste material to fall away without binding the blade

• Support the board fully on the band saw table — unsupported boards vibrate and produce rough cuts

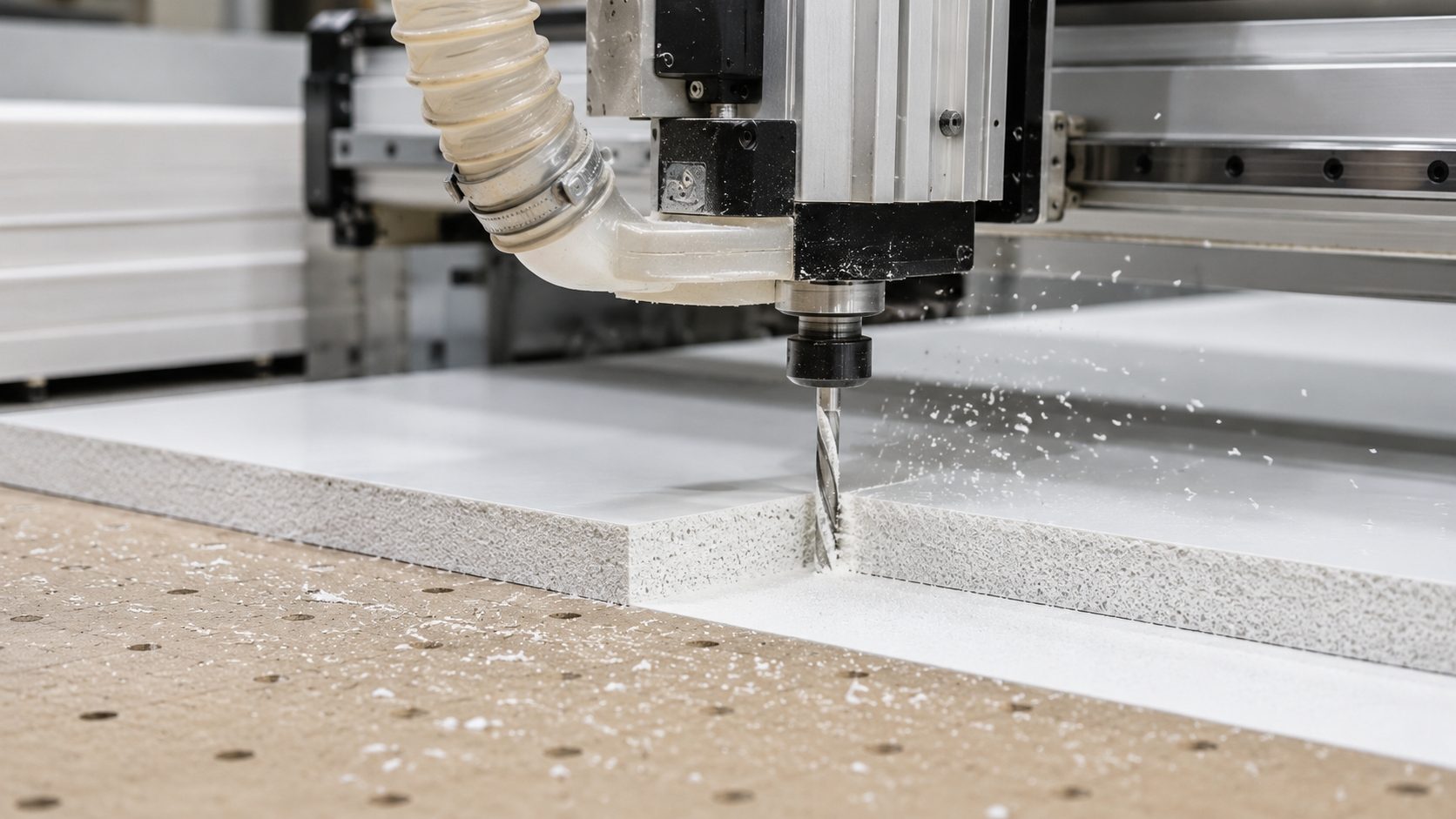

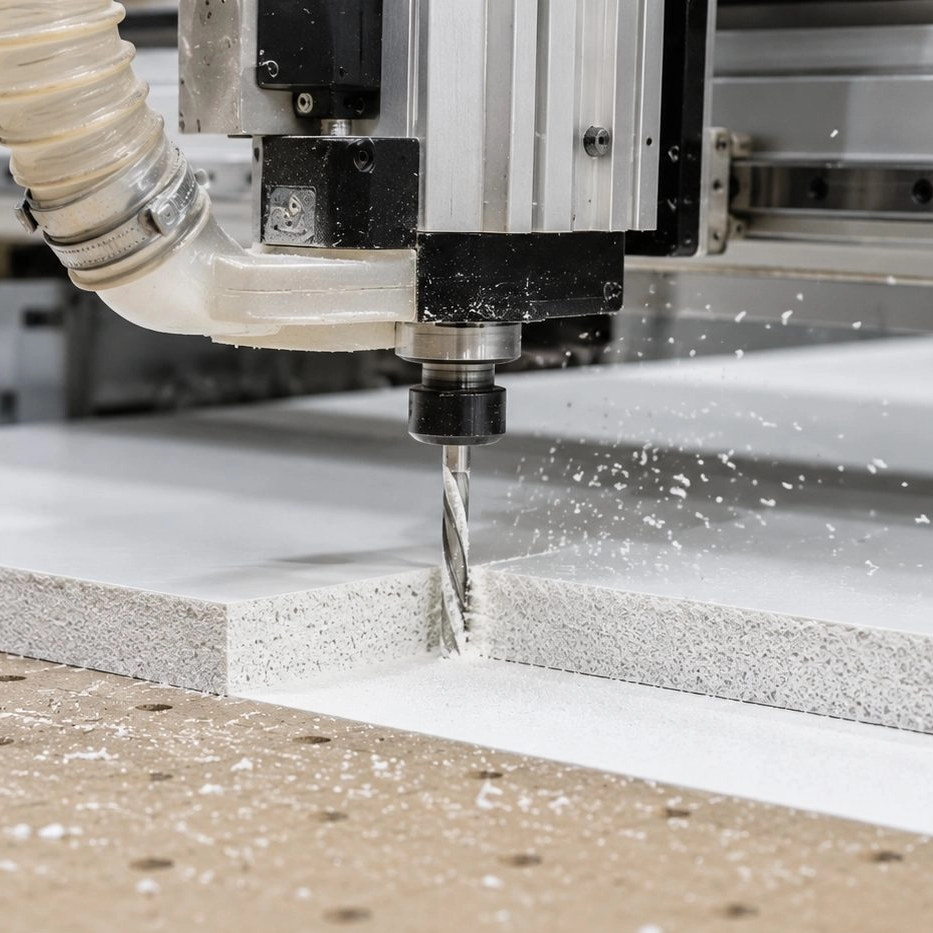

CNC Routing

CNC routing is the production standard for PVC foam board fabrication. It provides dimensional accuracy, repeatability, and the ability to produce complex profiles and shapes that are impractical with hand or power saw methods.

Router Bit Selection

Router bit selection is the single most important variable in CNC routing of PVC foam board.

Recommended bit types:

Single-flute upcut spiral (O-flute)

The most widely recommended bit for PVC foam board routing. The single flute provides:

• large chip clearance — chips evacuate efficiently, reducing heat buildup

• clean cutting action on the foam core

• good surface finish on cut edges

Double-flute upcut spiral

Suitable for higher-density boards (0.55 g/cm³ and above) where the denser material supports a higher chip load per flute. Produces a slightly smoother finish than single-flute in dense material.

Compression spiral (upcut/downcut combination)

Produces clean edges on both the top and bottom faces of the board simultaneously. Particularly valuable for:

• boards that will be visible on both faces in the finished piece

• applications where edge chipping on either face is unacceptable

Bits to avoid:

• Standard wood router bits with high helix angles — generate excessive heat in PVC

• Carbide-tipped bits with large land widths — rub rather than cut, generating heat

• Blunt or worn bits of any type — the most common cause of poor routing results

Cutting Parameters

CNC routing parameters for PVC foam board vary with board density, thickness, and bit diameter. The following table provides starting point parameters for common configurations:

Important: These are starting point parameters. Always run test cuts on a sample of the specific board being used and adjust based on the results. Edge quality, chip formation, and heat generation are the key indicators to monitor.

Signs of Incorrect Parameters

Workholding

Secure workholding is essential for accurate CNC routing. PVC foam board is light and can lift or shift during routing if not properly secured.

Methods:

• Vacuum table: The most effective method for production routing. Ensures the board is held flat and prevents lifting during upcut routing operations.

• Double-sided tape: Effective for smaller pieces and prototypes. Use tape rated for the cutting forces involved.

• Mechanical clamps: Suitable for large panels. Ensure clamps do not obstruct the tool path.

• Tabs: For parts that will be cut free from the sheet, leave small tabs connecting the part to the sheet. Cut tabs manually after routing.

Dust Extraction

Effective dust extraction is essential for both cut quality and workshop safety:

• PVC chips are a nuisance if allowed to accumulate on the work surface

• accumulated chips can re-melt from cutting heat and deposit on cut edges

• PVC dust is a respiratory irritant — extraction protects operators

• use a dust extractor rated for fine plastic dust; standard wood dust extractors are generally suitable

Drilling

Drilling clean holes in PVC foam board requires attention to bit selection and technique.

Drill Bit Selection

• Standard HSS twist drill bits work adequately for most drilling operations in PVC foam board

• Brad-point bits produce cleaner entry holes with less surface tearout — preferred for visible face drilling

• Step drill bits are useful for producing clean holes in thin boards without the tearout associated with standard twist bits

• Spade bits are not recommended — they generate heat and produce rough holes

Drilling Technique

• Use a backing board beneath the PVC foam board to prevent tearout on the exit face

• Drill at moderate speed — high drill speeds generate heat and can melt the PVC around the hole

• Apply light, consistent feed pressure — do not force the drill

• For large-diameter holes (above 20 mm), use a hole saw or router rather than a drill bit

Countersinking

For countersunk screw holes, use a countersink bit designed for plastics or a standard HSS countersink at low speed. Apply light pressure to avoid cracking the surface skin around the countersink.

Thermoforming and Bending

PVC foam board can be bent and formed by applying controlled heat, making it possible to produce curved panels and three-dimensional shapes without complex tooling.

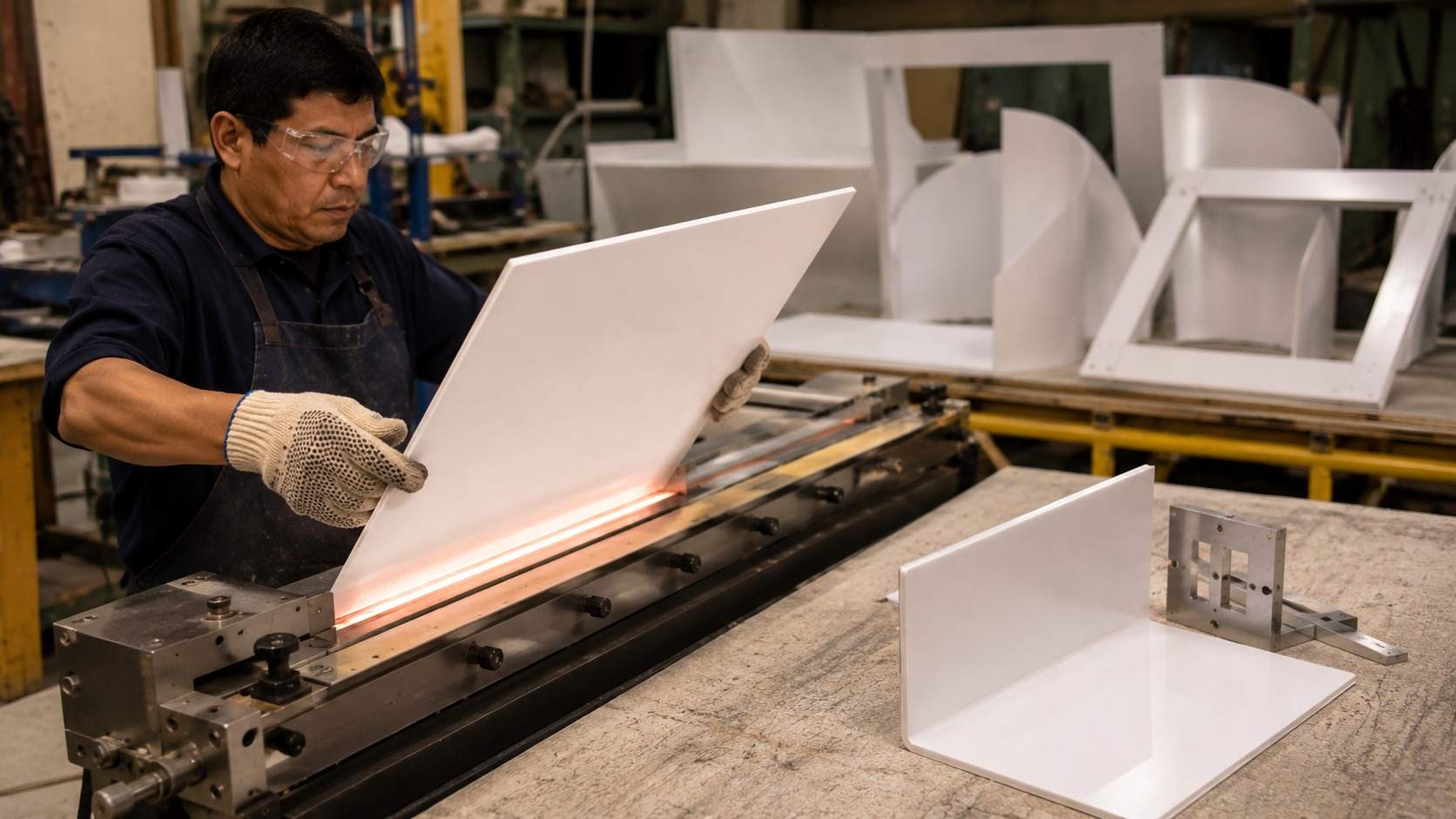

Strip Heating (Line Bending)

Strip heating uses a focused heat source — a strip heater or heat gun — to soften a narrow line across the board, allowing it to be bent to a precise angle.

Process:

1. Mark the bend line on the board

2. Apply heat along the bend line using a strip heater or heat gun, moving the heat source slowly and evenly

3. Heat until the board becomes flexible along the heated line — typically when the surface begins to show a slight sheen

4. Bend to the required angle against a former or jig

5. Hold in position until the board cools and retains the bend — typically 30–60 seconds

Key considerations:

• Heat both faces of the board for clean bends in boards above 5 mm thickness

• Do not overheat — overheating causes bubbling, discoloration, and structural damage

• Use a consistent, slow heating motion to avoid hot spots

• For production bending, a purpose-built strip heater produces more consistent results than a heat gun

Oven Forming

For complex curved shapes, the entire board can be heated in an oven and formed over a mould:

• Heat the board in an oven at 100–120°C until uniformly flexible — typically 5–15 minutes depending on thickness

• Remove from the oven and form over the mould immediately

• Hold in position until cooled

This method is suitable for producing curved panels, display elements, and architectural features.

Cutting Quality by Density and Thickness

Understanding how density and thickness affect cutting quality helps fabricators set appropriate expectations and select the right approach.

Post-Cutting Finishing

Even with optimal cutting parameters, cut edges in PVC foam board may require some finishing work before the piece is ready for assembly or surface finishing.

Deburring and Edge Cleaning

• Remove any re-solidified PVC from cut edges using a sharp craft knife or fine file

• For CNC-routed edges, a light pass with 180–220 grit sandpaper removes any minor surface roughness

• Do not use coarse abrasives — they create scratches that are difficult to remove

Edge Smoothing

For edges that will be visible in the finished piece:

• Sand progressively through 180, 220, and 320 grit for a smooth finish

• For painted edges, apply high-build primer after sanding to close any remaining surface porosity

• For edges that will be laminated with edge banding, ensure the edge is flat and square before applying the banding

Dimensional Verification

After cutting, verify critical dimensions before proceeding to assembly. PVC foam board is dimensionally stable, but cutting errors cannot be corrected after assembly. Check:

• overall dimensions against the cut list

• squareness of corners using a set square

• consistency of repeated parts using a sample check

Conclusion

Cutting and machining PVC foam board to a professional standard requires matching the tool and technique to the material's specific properties — its thermal sensitivity, its foam core structure, and the density-dependent differences between grades.

The principles that apply across every cutting method:

• Sharp tooling is non-negotiable — blunt tools generate heat and produce poor results in PVC foam board regardless of the cutting method

• Manage heat — every cutting decision, from blade tooth count to CNC feed rate, should be evaluated in terms of its effect on heat generation at the cutting zone

• Match parameters to density — higher-density boards require different parameters from lower-density boards; use the guidance in this article as a starting point and adjust based on test cuts

• Invest in dust extraction — for both cut quality and operator health, effective dust extraction is essential in any PVC foam board fabrication environment

• CNC routing is the production standard — for any application requiring dimensional accuracy, complex profiles, or consistent repeatability, CNC routing with appropriate tooling and parameters produces results that hand and power saw methods cannot match

Fabricators who apply these principles consistently will find PVC foam board to be a highly reliable, efficient, and versatile material across every cutting and machining application.

For guidance on joining and assembling cut components, see our complete guide to bonding and joining PVC foam board . For surface finishing after cutting, see our guide to how to paint and finish PVC foam board . To understand how board density affects machinability and edge quality, refer to our PVC foam board density guide .

To explore our full range of PVC foam board products, visit our PVC Foam Board category or browse our PVC Sheet collection .

FAQ

What is the best blade for cutting PVC foam board with a circular saw?

Use a fine-tooth TCT (tungsten carbide tipped) blade with 80–100 teeth for a 250 mm blade. Fine-tooth blades produce clean, smooth cuts with minimal chipping. Avoid coarse wood-cutting blades, which cause chipping and rough edges.

Can I cut PVC foam board with a utility knife?

Yes, for boards up to 5 mm thickness. Use a sharp blade and make multiple progressive passes rather than attempting to cut through in one stroke. Replace blades frequently — PVC dulls blades faster than most other materials.

Why is my CNC-routed PVC foam board edge melting?

Melting at the cut edge indicates excessive heat generation — most commonly caused by a feed rate that is too slow, a spindle speed that is too high, or a blunt router bit. Increase the feed rate, reduce the spindle speed, or replace the bit. Single-flute (O-flute) bits with good chip clearance are the most effective for preventing heat buildup.

What router bit should I use for CNC routing PVC foam board?

A single-flute upcut spiral (O-flute) bit is the most widely recommended for PVC foam board. It provides excellent chip clearance, reduces heat buildup, and produces clean cut edges. For applications requiring clean edges on both faces, use a compression spiral bit.

Can PVC foam board be bent into curves?

Yes. PVC foam board can be bent by applying controlled heat along the bend line using a strip heater or heat gun. Heat until the material becomes flexible, bend to the required angle, and hold until cooled. For complex curved shapes, the board can be heated in an oven and formed over a mould.

How do I prevent chipping on the face of the board when routing?

Chipping on the top face is typically caused by an upcut bit pulling the surface skin upward. Switch to a compression spiral bit, which cuts downward at the top face and upward at the bottom face simultaneously, producing clean edges on both faces. Ensure the board is firmly held flat on the CNC table.

What speed should I use for drilling PVC foam board?

Use moderate drill speeds — approximately 1,000–2,000 RPM for standard twist bits. High speeds generate heat and can melt the PVC around the hole. Use a backing board beneath the workpiece to prevent tearout on the exit face.
