The kitchen is the most demanding environment in any residential or commercial building for cabinet materials. Temperature fluctuates with cooking. Steam from boiling water saturates the air. Water splashes onto cabinet bases and behind sinks. Cleaning chemicals are applied repeatedly to surfaces. And the cabinets are expected to perform without swelling, warping, delaminating, or developing mould for ten, fifteen, or twenty years.

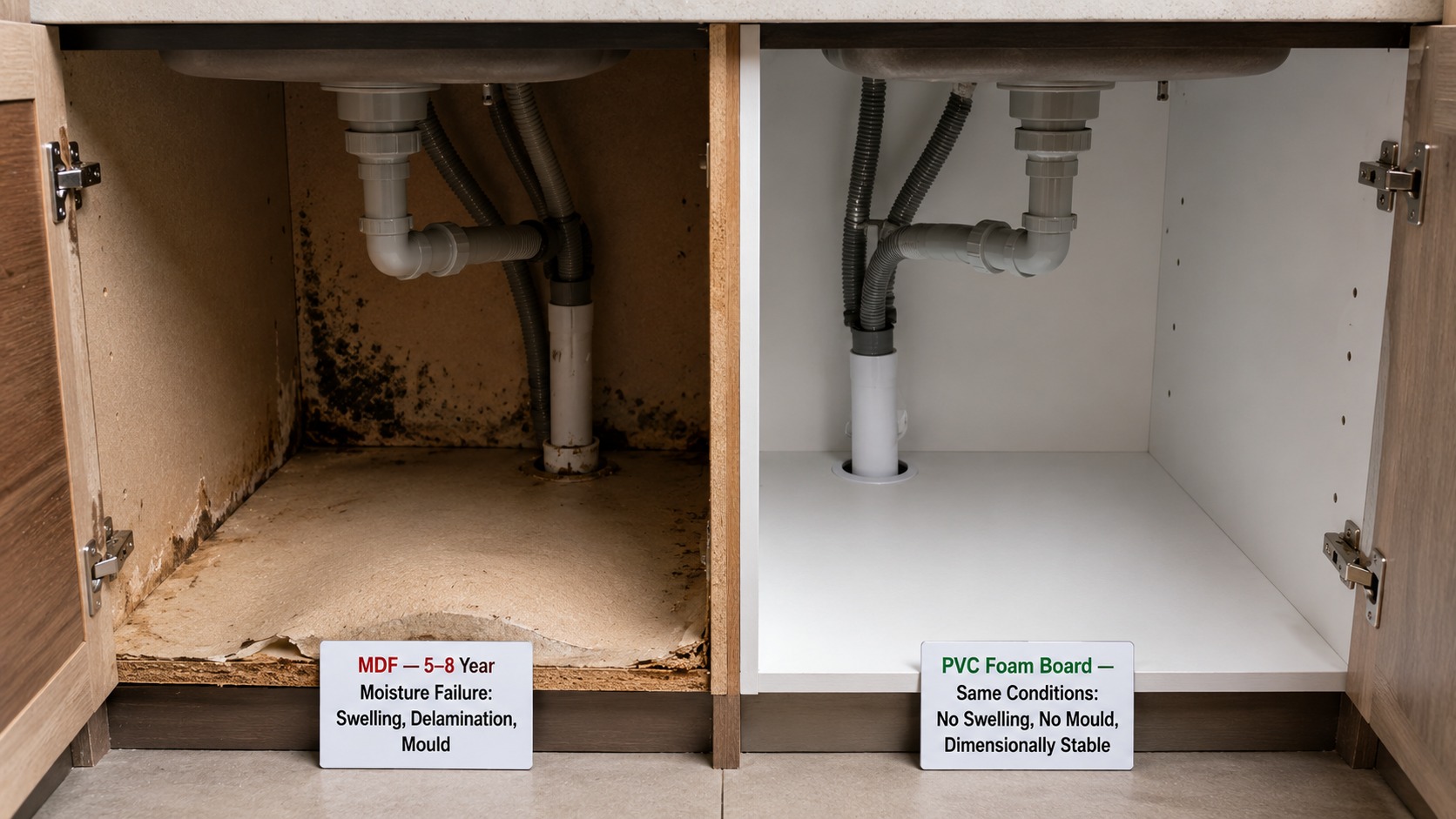

MDF — the dominant material in mass-market kitchen cabinetry for the past three decades — handles dry conditions well but struggles with sustained moisture exposure. Even moisture-resistant MDF grades swell at edges, delaminate at joints, and support mould growth behind kickboards and under sinks when moisture is present over extended periods. The result is a familiar pattern: kitchen cabinets that look excellent on installation day and begin to fail within five to eight years in the areas of highest moisture exposure.
PVC foam board addresses this failure mode directly. It does not absorb water. It does not swell. It does not support mould or biological growth. And in the density grades appropriate for cabinetry — 0.55 g/cm³ and above — it machines, joins, and finishes to a standard that is fully comparable to MDF for professional kitchen fabrication.
This guide provides a complete technical reference for fabricators, joiners, and kitchen designers specifying and working with PVC foam board for kitchen cabinet construction — covering material selection, structural design, joinery methods, surface finishing, and the practical fabrication details that determine whether the finished installation performs as intended.
Kitchen cabinets are exposed to a combination of stressors that few other interior applications match:
Steam and condensation — from cooking, dishwashers, and kettles; penetrates cabinet interiors and saturates the air around base units
Direct water contact — under-sink cabinets are routinely exposed to drips, leaks, and cleaning water
Cleaning chemicals — surface cleaners, degreasers, and bleach-based products applied to cabinet exteriors
Temperature cycling — cabinets adjacent to ovens and hobs experience repeated heating and cooling
Mechanical wear — door and drawer fronts are opened and closed thousands of times per year; hinges and drawer runners apply repeated stress to the cabinet carcass
A material that performs well in a dry office environment may fail rapidly in this combination of conditions. Specification decisions made at the design stage determine whether the kitchen performs reliably over its intended service life or requires costly remediation within a few years.
PVC foam board addresses each of the kitchen environment's primary stressors:
Moisture resistance: PVC does not absorb water. Cabinet carcasses fabricated from PVC foam board will not swell, warp, or delaminate in the presence of steam, condensation, or water contact.
Mould resistance: PVC foam board does not contain organic material. It does not support mould, mildew, or bacterial growth — a significant advantage in the persistently damp conditions behind kickboards and under sinks.
Chemical resistance: PVC has good resistance to the cleaning chemicals used in domestic and commercial kitchens. Surfaces are not damaged by routine cleaning.
Dimensional stability: PVC foam board maintains its dimensions in humid conditions. Doors and drawers that fit correctly on installation day will continue to fit correctly after years of kitchen use.
Temperature performance: PVC foam board is suitable for the temperature range encountered in kitchen environments. It should not be used as a direct heat shield adjacent to ovens without appropriate thermal separation, but it performs reliably in the ambient temperature conditions of a working kitchen.
Not all PVC foam board is equally suited to kitchen cabinet fabrication. Density and process type are the critical selection variables.
For kitchen cabinet carcasses — the structural boxes that form the base and wall units — a minimum density of 0.55 g/cm³ is recommended. This density provides:
adequate screw holding for hinge plates, drawer runners, and shelf pins
sufficient rigidity to resist racking under load without additional bracing
a surface hard enough to accept paint and laminate finishes to a professional standard
For cabinet door and drawer fronts — which are handled repeatedly and must present a consistent, high-quality finish — specify 0.60 g/cm³ or above. The harder surface of higher-density boards produces better results for painted and laminated door fronts and is more resistant to surface damage in use.
For internal shelving and non-structural components, 0.45–0.50 g/cm³ is acceptable and reduces material cost without compromising performance.
For kitchen cabinetry, Celuka-process PVC foam board is strongly recommended over free foam board:
the harder, denser skin layer of Celuka board provides better screw holding at the surface
Celuka board machines to cleaner edges and profiles, reducing finishing work
the more homogeneous surface of Celuka board produces better results for high-gloss painted door fronts
Celuka board's greater rigidity reduces panel deflection in wide shelves and cabinet bases
For a detailed technical comparison of Celuka and free foam board properties, see our guide on Celuka vs free foam board .
Cabinet Component | Recommended Thickness | Recommended Density |
Base unit carcass sides | 18 mm | 0.55–0.60 g/cm³ |
Base unit carcass top/bottom | 18 mm | 0.55–0.60 g/cm³ |
Wall unit carcass sides | 15–18 mm | 0.55–0.60 g/cm³ |
Wall unit carcass top/bottom | 15–18 mm | 0.55–0.60 g/cm³ |
Cabinet back panel | 6–9 mm | 0.45–0.50 g/cm³ |
Internal shelving | 15–18 mm | 0.45–0.55 g/cm³ |
Door fronts (flat) | 18 mm | 0.60–0.65 g/cm³ |
Door fronts (routed profile) | 18–22 mm | 0.60–0.65 g/cm³ |
Drawer fronts | 15–18 mm | 0.60–0.65 g/cm³ |
Kickboards | 15 mm | 0.45–0.50 g/cm³ |
Drawer boxes | 12–15 mm | 0.50–0.55 g/cm³ |
For a comprehensive explanation of how density affects structural performance, surface quality, and machinability across all applications, refer to our PVC foam board density guide .
PVC foam board kitchen cabinets can be designed using the same basic carcass geometry as MDF or particleboard cabinets, with several important structural considerations specific to the material.
Butt joint with mechanical fasteners
The most common carcass construction method. Side panels are joined to top and bottom panels using screws, with the joint reinforced by a bead of PVC-compatible adhesive.
Use coarse-thread screws designed for plastics — standard wood screws have insufficient thread engagement in PVC foam board
Pre-drill pilot holes to prevent splitting — use a drill bit 0.5–1.0 mm smaller than the screw shank diameter
Apply PVC-compatible adhesive (solvent cement or two-part structural adhesive) to the joint face before fastening
For base units, the bottom panel typically sits inside the side panels; for wall units, the top and bottom panels typically sit inside the side panels
Dowel joints
Dowel joints provide accurate alignment and good joint strength when combined with adhesive:
use 8 mm or 10 mm diameter dowels
apply PVC-compatible adhesive to both the dowel and the dowel hole before assembly
ensure dowel holes are drilled accurately — a dowelling jig is recommended for production work
Biscuit joints
Biscuit joints are less commonly used in PVC foam board than in MDF, as the foam core provides less mechanical engagement for the biscuit. If biscuit joints are used, apply adhesive generously and clamp firmly until cured.
Cam lock fittings (confirmat system)
Cam lock fittings are widely used in flat-pack and production cabinet construction:
suitable for PVC foam board at 0.55 g/cm³ and above
drill holes accurately to the fitting manufacturer's specifications
the cam lock provides good pull-out resistance when the board density is sufficient
PVC foam board carcasses have lower inherent racking resistance than MDF carcasses of equivalent thickness, due to PVC foam board's lower flexural modulus. For kitchen cabinets — which are fixed to walls and therefore have external racking restraint — this is generally not a concern. However, for freestanding units, incorporate:
a full-height back panel glued and screwed into a rebate in the side panels — this is the most effective racking restraint
a diagonal brace or fixed shelf at the top of the carcass if a full back panel is not used
For shelves spanning more than 600 mm in kitchen wall units, check the expected deflection under load. PVC foam board shelves at 18 mm thickness will deflect more than MDF shelves of equivalent thickness under the same load. Options to manage shelf deflection:
increase shelf thickness to 22 mm or 25 mm for spans above 600 mm
add a solid front lipping to the shelf to increase effective depth and stiffness
reduce shelf span by adding a vertical divider

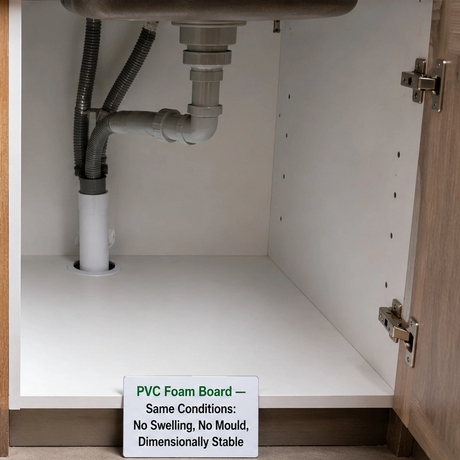

Under-sink cabinets deserve specific attention as the highest-moisture-risk location in the kitchen:
use PVC foam board throughout — do not mix PVC foam board carcass with MDF back panels or shelving
seal all cut edges with PVC-compatible sealant before assembly — this prevents any water ingress into the foam core
design the cabinet base to allow water drainage in the event of a leak — a slight slope toward the front, or drainage holes at the rear, prevent water pooling
use stainless steel or plastic hinges and fittings — avoid zinc die-cast fittings that corrode in persistently damp conditions
Adhesive selection is critical for PVC foam board kitchen cabinets. The adhesive must bond effectively to PVC and maintain its bond in the humid kitchen environment.
Recommended adhesive types:
PVC solvent cement
Solvent cement creates a chemical weld between PVC surfaces by partially dissolving and fusing the PVC at the joint interface. It provides the strongest and most moisture-resistant bond available for PVC-to-PVC joints.
apply to both joint surfaces using a brush or applicator
allow a brief flash-off period (typically 30–60 seconds) before joining
press joint surfaces together firmly and hold for the manufacturer's specified cure time
solvent cement bonds are permanent — ensure alignment is correct before joining
Two-part structural adhesive (methacrylate or epoxy)
Two-part structural adhesives provide high-strength bonds between PVC foam board components and between PVC foam board and dissimilar materials (metal fittings, HPL laminate, etc.):
mix components at the specified ratio
apply to one or both surfaces depending on the adhesive type
clamp or hold until cured
suitable for high-stress joints including hinge mounting areas
Contact adhesive (neoprene-based)
Contact adhesive is the standard choice for bonding HPL laminate and self-adhesive vinyl to PVC foam board carcass panels:
apply to both surfaces and allow to become tack-free
join surfaces carefully — contact adhesive bonds on contact and repositioning is not possible
apply pressure across the full surface after joining
For a complete guide to adhesive selection and joint design for PVC foam board, see our guide to bonding and joining PVC foam board .
Screw selection:
Use coarse-thread screws with a thread form designed for plastics or softwood — these provide better thread engagement in PVC foam board than fine-thread screws
Recommended: 4.0 mm × 40 mm or 4.5 mm × 40 mm coarse-thread screws for carcass assembly at 18 mm board thickness
Always pre-drill pilot holes — driving screws without pilot holes risks splitting the board, particularly near edges
Screw spacing and edge distance:
Minimum edge distance: 25 mm from the board edge for face screws; 30 mm for edge screws
Maximum screw spacing for back panel fixing: 200 mm centres
For hinge plate mounting: use the hinge manufacturer's specified screw size; add a bead of two-part adhesive behind the hinge plate for additional security in high-use applications
Hinge and drawer runner selection:
Use full overlay or inset hinges with a minimum 35 mm cup diameter — standard kitchen cabinet hinges are compatible with PVC foam board at 0.55 g/cm³ and above
Undermount drawer runners provide better load distribution than side-mount runners in PVC foam board drawer boxes
For heavy drawers (above 20 kg loaded), use drawer runners with a load rating appropriate for the application and consider reinforcing the drawer runner mounting area with a strip of higher-density board or aluminium extrusion
For production kitchen cabinet fabrication, a panel saw or CNC router is the appropriate cutting method:
Panel saw: Use a fine-tooth TCT blade (80–100 teeth for a 250 mm blade). Feed at a steady, consistent rate. Ensure the scoring blade is set correctly to prevent chipping on the face veneer or laminate if pre-laminated boards are being cut.
CNC router: Use a single-flute O-flute bit for PVC foam board. Set spindle speed to 18,000–22,000 RPM and feed rate to 4,000–6,000 mm/min for 0.55 g/cm³ board. Adjust parameters based on test cuts. See our complete guide to cutting and machining PVC foam board for full parameter guidance.
Routed profiles on door fronts are one of the most demanding machining operations for PVC foam board:
use a compression spiral bit for door front profiling — it produces clean edges on both faces simultaneously
run test profiles on offcuts before committing to production door fronts
higher-density boards (0.60–0.65 g/cm³) produce cleaner routed profiles than lower-density boards
for complex profiles, consider multiple passes at increasing depth rather than a single full-depth pass
Hinge cup holes: use a 35 mm Forstner bit at low speed (500–800 RPM). Apply light, consistent feed pressure. Back the board with a sacrificial board to prevent tearout on the exit face.
Shelf pin holes: use a 5 mm brad-point bit. A shelf pin jig ensures consistent hole spacing and alignment.
Dowel holes: use a 8 mm or 10 mm brad-point bit with a dowelling jig for accuracy.
Painted PVC foam board door fronts can achieve a finish quality equivalent to painted MDF when the correct preparation and paint system is used.

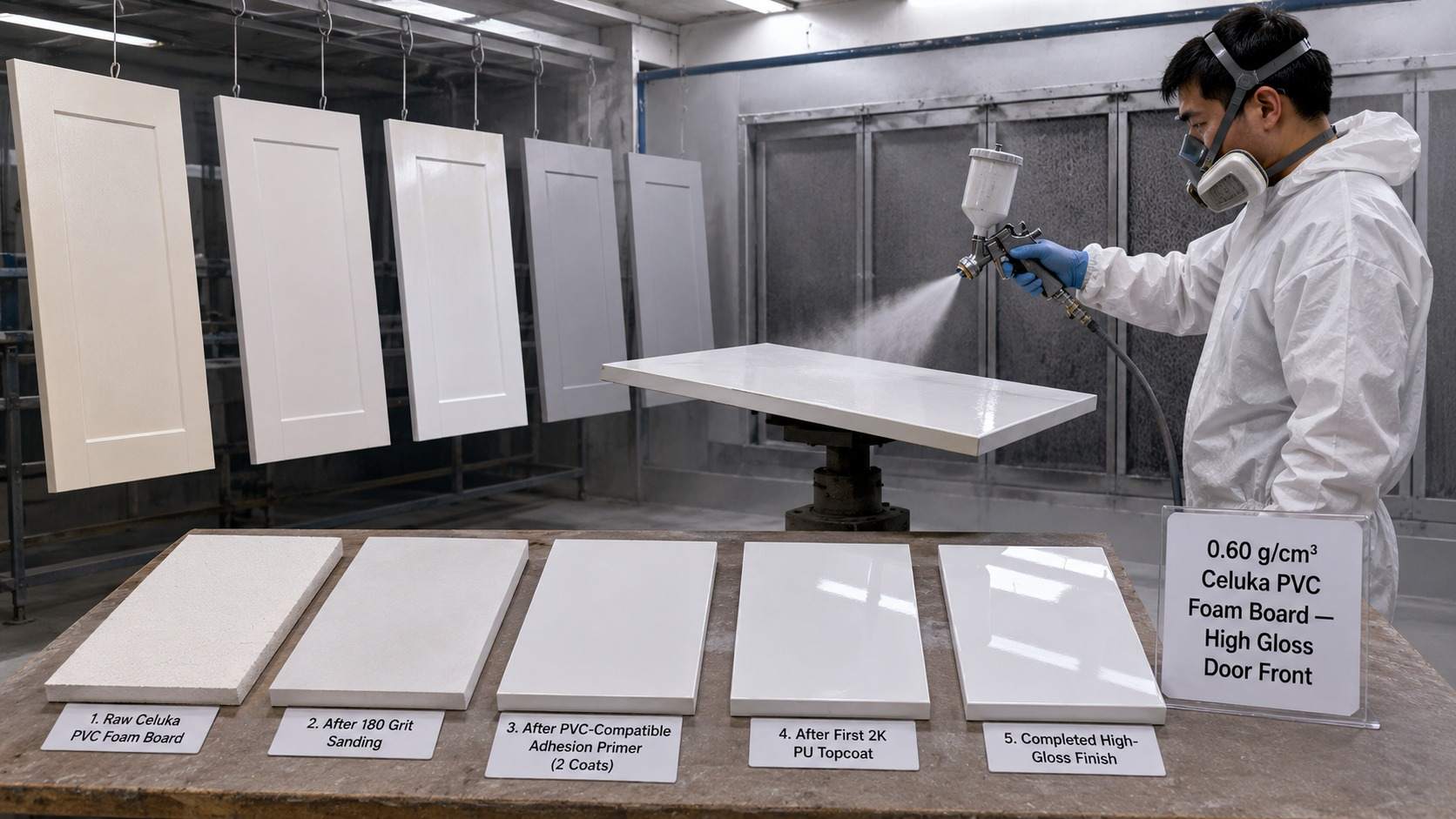

Process for high-gloss painted door fronts:
Sand the face with 180 grit to create a consistent key
Clean with isopropyl alcohol (IPA) — remove all sanding dust and handling contamination
Apply PVC-compatible adhesion primer — two thin coats, sanding with 320 grit between coats
Apply 2K polyurethane topcoat — two to three thin coats by spray
Sand lightly with 400 grit between coats
Final coat: apply without sanding; allow full cure before handling
Optional: machine polish for maximum gloss depth
Key considerations:
Spray application is essential for high-gloss door fronts — brush application will not achieve the required finish quality
Allow full cure time before fitting doors — 2K PU paint continues to harden for 24–72 hours after application
For routed profile door fronts, ensure all routed edges are smooth and free of re-solidified PVC before priming
For a complete guide to primer selection, paint systems, and application technique, see our guide to how to paint and finish PVC foam board .
High-pressure laminate (HPL) bonded to PVC foam board carcass panels provides a highly durable, easy-clean surface for kitchen cabinet interiors and exteriors:
bond HPL using contact adhesive applied to both surfaces
allow adhesive to become tack-free before joining — typically 10–15 minutes depending on temperature and ventilation
join from one edge, applying firm pressure progressively across the panel
use a rubber roller to ensure full contact across the entire surface
trim excess HPL with a router and flush-trim bit after bonding
apply PVC edge banding to all exposed edges
Thermofoil — a heat-activated vinyl film — is widely used for kitchen door fronts and is fully compatible with PVC foam board:
apply using a membrane press with heat (typically 120–140°C) and vacuum
the film conforms tightly to routed profiles and shaped edges
provides a seamless, moisture-resistant surface with no exposed edges for water ingress
available in gloss, matte, and wood grain finishes
suitable for both flat and profiled door fronts
Self-adhesive vinyl wrap is a cost-effective alternative to thermofoil for door fronts and carcass panels:
clean the board surface with IPA before application
use cast vinyl for profiled door fronts — it conforms better to routed profiles than calendered vinyl
apply heat with a heat gun to conform vinyl around edges and into profile recesses
seal all edges with a compatible edge sealant to prevent lifting in humid condition
Wall units fabricated from PVC foam board are lighter than equivalent MDF units, which simplifies wall fixing:
use standard kitchen cabinet wall brackets or a hanging rail system
fixing centres and bracket specifications follow the same principles as for MDF cabinets
the lighter weight of PVC foam board wall units reduces the structural demand on wall fixings — an advantage in installations on lightweight partition walls
PVC foam board scribes cleanly with a jigsaw or router, making it straightforward to fit cabinets against uneven walls and floors:
use a jigsaw with a fine-tooth plastic-cutting blade for scribing cuts
sand scribed edges smooth before finishing
PVC foam board does not absorb moisture from wall surfaces, so no moisture barrier is required between the cabinet and the wall
At floor level, seal the gap between the kickboard and the floor with a flexible, waterproof sealant. This prevents water from cleaning and mopping from penetrating behind the kickboard and pooling against the cabinet base. PVC foam board kickboards will not be damaged by water contact, but preventing water accumulation behind cabinets is good practice regardless of the cabinet material.
PVC foam board has a higher coefficient of thermal expansion than MDF. For long runs of base units in kitchens adjacent to heat sources, allow a small expansion gap (1–2 mm) between cabinet carcasses and at the ends of runs. This prevents buckling of the cabinet run as the material expands with temperature changes.
PVC foam board kitchen cabinets are easy to clean and maintain:
wipe surfaces with a damp cloth and mild detergent for routine cleaning
for grease and cooking residue, use a kitchen degreaser — PVC foam board surfaces are resistant to the cleaning chemicals used in domestic kitchens
avoid abrasive cleaners and scourers on painted or laminated surfaces, as these will scratch the finish
do not use solvent-based cleaners (acetone, paint thinner) on painted surfaces
Minor surface damage to PVC foam board kitchen cabinets can be repaired:
Scratches in painted surfaces: Sand the affected area with 320 grit, clean with IPA, and apply touch-up paint matched to the original finish
Chips at edges: Fill with PVC-compatible filler, sand smooth, and refinish
Hinge screw holes that have lost grip: Fill the hole with two-part epoxy filler, allow to cure fully, and re-drill the pilot hole before refitting the hinge
PVC foam board kitchen cabinets, correctly specified and fabricated, should provide a service life of 15–25 years or more in normal kitchen conditions. The primary limitation on service life is the surface finish — painted and laminated finishes will show wear over time — rather than the structural integrity of the carcass material. This compares favorably with MDF kitchen cabinets, where carcass degradation from moisture exposure is frequently the limiting factor.
PVC foam board is a technically superior material to MDF for kitchen cabinet fabrication in any environment where moisture is present — which is to say, in virtually every kitchen. Its moisture resistance, mould resistance, dimensional stability, and long service life address the primary failure modes of MDF kitchen cabinetry directly.
The specification and fabrication principles that produce reliable, professional results:
Specify the right density — 0.55 g/cm³ minimum for carcasses; 0.60 g/cm³ and above for door fronts and high-wear components
Use Celuka-process board for all visible components and structural carcass elements
Use PVC-compatible adhesives and fasteners — the joint system must match the material
Seal all cut edges before assembly — particularly in under-sink and high-moisture locations
Use the correct primer for painted finishes — PVC-compatible adhesion primer is non-negotiable
Allow for thermal expansion in long cabinet runs adjacent to heat sources
Fabricators who apply these principles consistently will produce kitchen installations that outperform MDF equivalents in service life, moisture resistance, and long-term appearance — delivering better value for clients and fewer callbacks for the fabricator.
To explore our full range of PVC foam board products suitable for kitchen cabinetry, visit our PVC Foam Board category or browse our PVC Sheet collection . Our technical team is available to advise on grade selection and specifications for your kitchen fabrication projects.
Yes. PVC foam board at 0.55 g/cm³ and above is fully suitable for kitchen cabinet carcass construction. It provides adequate rigidity, good screw holding for hinges and drawer runners, and inherent moisture resistance that makes it superior to MDF in kitchen environments.
Use a minimum of 0.55 g/cm³ for carcass panels and 0.60 g/cm³ for door and drawer fronts. Higher-density Celuka boards provide better screw holding, cleaner machined edges, and superior surface finish quality for painted door fronts.
Yes. PVC foam board does not absorb water and will not swell, warp, or delaminate when wet. This makes it the correct specification for under-sink cabinets and any other kitchen location subject to water exposure. Seal cut edges before assembly as a best practice.
Use standard 35 mm cup hinges. Drill the hinge cup hole with a 35 mm Forstner bit at low speed. Use coarse-thread screws for the hinge plate and pre-drill pilot holes. For additional security in high-use applications, apply a small amount of two-part structural adhesive behind the hinge plate before screwing.
Yes. Higher-density Celuka PVC foam board (0.60 g/cm³ and above) can be painted to a high-gloss finish equivalent to painted MDF. The process requires a PVC-compatible adhesion primer and a 2K polyurethane topcoat applied by spray. See our guide to painting and finishing PVC foam board for full details.
Yes, typically 30–80% more per sheet depending on grade and thickness. However, PVC foam board's service life advantage in kitchen environments — where MDF frequently degrades from moisture exposure within 5–8 years — means the total cost of ownership over the life of the kitchen is often lower for PVC foam board.
No. PVC foam board does not contain organic material and does not support mould, mildew, or bacterial growth. This is a significant advantage over MDF, which can develop mould growth in persistently damp conditions behind kickboards and under sinks.
Fabricating kitchen cabinets that need to perform in demanding conditions for the long term?
Jinbao PVC manufactures Celuka PVC foam board specifically suited to kitchen cabinet fabrication — with consistent density, tight thickness tolerances, and hard surface skins that machine cleanly and finish to a professional standard. Available in 0.55, 0.60, and 0.65 g/cm³ grades and thicknesses from 12 mm to 25 mm.
Contact us today to request samples and technical data sheets for your kitchen fabrication projects.
