PVC Foam Board vs MDF: Which Should You Choose for Your Project?

MDF and PVC foam board are two of the most widely specified panel materials in fabrication, signage, furniture, and construction. Both are available in a wide range of thicknesses, both machine well, both accept paint and laminate finishes, and both are used across overlapping application categories. On the surface, they appear to be interchangeable alternatives.

They are not.

The differences between PVC foam board and MDF are significant, and in many applications those differences determine whether the finished piece performs reliably over its service life or fails prematurely. MDF absorbs moisture and swells. PVC foam board does not. PVC foam board is a fraction of the weight of MDF. MDF is significantly cheaper per sheet. MDF paints and laminates to a very smooth finish. PVC foam board requires a different primer and preparation approach. Each material has a defined set of applications where it is the correct choice — and a set of applications where specifying it over the alternative is a mistake.

This guide provides a complete, application-focused comparison of PVC foam board and MDF across every dimension that matters for fabricators, designers, and specifiers: weight, moisture resistance, machinability, surface finishing, structural performance, cost, and environmental considerations. By the end, you will have a clear framework for choosing the right material for every project.

1. Material Overview

What is MDF?

Medium-density fibreboard (MDF) is an engineered wood product manufactured by breaking down wood fibres and bonding them with synthetic resin under heat and pressure. The result is a dense, homogeneous panel with no grain direction, consistent density throughout, and a smooth surface that accepts paint and laminate finishes well.

MDF is available in standard and moisture-resistant (MR) grades. Standard MDF is suitable for dry interior applications only. MR-grade MDF has improved — but not waterproof — moisture resistance, achieved through the addition of moisture-resistant resins during manufacture.

What is PVC Foam Board?

PVC foam board is an extruded rigid panel made from polyvinyl chloride with a cellular foam core and denser skin layers on each face. It is manufactured in two primary process variants — Celuka and free foam — which produce different density profiles and surface characteristics.

PVC foam board is inherently moisture-resistant, dimensionally stable in wet environments, and significantly lighter than MDF. It does not contain wood fibres, formaldehyde-based resins, or organic materials that support mould or biological degradation.

For a detailed explanation of how Celuka and free foam boards differ in surface hardness and density profile, see our guide on Celuka vs free foam board.

2. Weight Comparison

Weight is one of the most practically significant differences between PVC foam board and MDF, and it affects handling, installation, transport, and structural loading in every application.

Typical Weight by Thickness

Note: PVC foam board density varies by grade (0.40–0.70 g/cm³). Higher-density Celuka boards will be heavier than the values shown. Lower-density free foam boards will be lighter.

Why Weight Matters

For many applications, a 33% weight reduction is a meaningful practical advantage:

• Exhibition and trade show displays: Lighter panels reduce freight costs and handling labor for displays that are assembled, transported, and reassembled repeatedly. See our complete guide to PVC foam board for exhibition and trade show displays.

• Wall-mounted signage and cladding: Lighter panels reduce the structural load on fixings and the substrate wall.

• Furniture for transport: For furniture that will be moved frequently — retail display fixtures, hospitality fit-out — lighter panels reduce handling effort and the risk of damage.

• Marine and coastal applications: Every kilogram of weight matters in marine applications. See our guide to PVC foam board in marine and coastal applications.

When weight is not the deciding factor: For fixed interior furniture and cabinetry that will never be moved after installation, the weight difference between PVC foam board and MDF is largely irrelevant. Other factors — cost, surface finish quality, machinability — become more important.

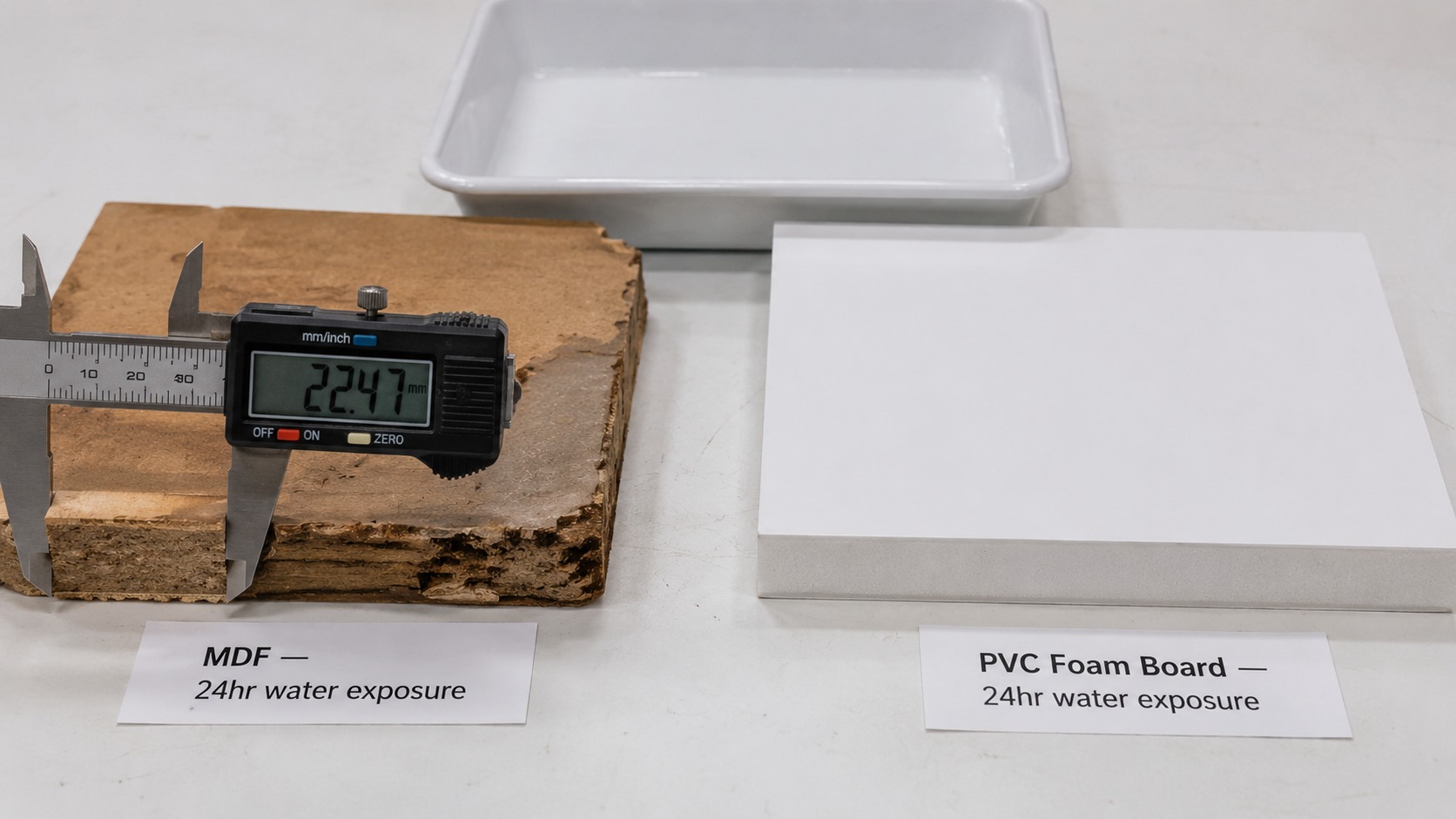

3. Moisture Resistance

Moisture resistance is the most critical performance difference between PVC foam board and MDF, and it is the factor that most often determines which material is the correct specification.

MDF and Moisture

Standard MDF is highly susceptible to moisture damage:

• absorbs water readily through cut edges and surface pores

• swells significantly when wet — edge swelling of 20–30% is common after water exposure

• loses structural integrity when wet — the resin bond between fibres breaks down

• does not recover its original dimensions or strength after drying

• supports mould growth in persistently damp conditions

Moisture-resistant (MR) MDF performs better than standard MDF in humid conditions but is not waterproof. It will still swell and degrade with prolonged water contact. It is suitable for humid interior environments — bathrooms, kitchens — but not for exterior use or direct water exposure.

PVC Foam Board and Moisture

PVC foam board is inherently moisture-resistant by virtue of its polymer composition:

• does not absorb water through the surface or cut edges

• does not swell, warp, or delaminate when wet

• retains full structural integrity after water exposure and drying

• does not support mould, mildew, or biological growth

• suitable for exterior applications, marine environments, and direct water contact

The practical implications are significant. In any application where the panel will be exposed to moisture — exterior signage, bathroom cabinetry, kitchen furniture, marine applications, outdoor displays — PVC foam board is the technically correct specification. MDF, even MR grade, is a compromise that will degrade over time.

Moisture Resistance Summary

4. Machinability

Both PVC foam board and MDF machine well, but they behave differently under tooling in ways that matter for fabricators.

Cutting

MDF: Cuts cleanly with standard wood-cutting blades and router bits. Produces fine dust that is a significant respiratory hazard — MDF dust contains formaldehyde-based resin particles and requires effective dust extraction and respiratory protection. Blades and bits dull relatively quickly due to the abrasive resin content of MDF.

PVC foam board: Requires fine-tooth blades and appropriate router bit geometry to prevent heat buildup and melting at the cut edge. Produces chips rather than fine dust, which are easier to manage. Does not contain formaldehyde or wood resins. Less abrasive to tooling than MDF, so blades and bits maintain their edge longer.

For a complete guide to cutting parameters, blade selection, and CNC routing of PVC foam board, see our guide to how to cut and machine PVC foam board.

Routing and Profiling

MDF: Routes very cleanly with standard wood router bits. Produces crisp, smooth profiles. The homogeneous density of MDF means there is no skin/core difference to manage. Fine dust generation is the primary concern.

PVC foam board: Routes well with appropriate tooling — single-flute O-flute bits for CNC routing, fine-tooth blades for saw cutting. Higher-density Celuka boards produce cleaner routed profiles than lower-density free foam boards. The skin/core structure requires attention to bit selection to avoid chipping the skin layer.

Screw Holding

MDF: Good screw holding in the face, but poor screw holding at edges — screws driven into MDF edges frequently cause splitting. Pilot holes are essential. Edge screwing is generally not recommended without reinforcement.

PVC foam board: Screw holding varies significantly with density. Higher-density boards (0.60 g/cm³ and above) provide good screw holding in both face and edge orientations. Lower-density boards have limited screw holding and are better joined with adhesives or mechanical connectors. Use coarse-thread screws designed for plastics rather than standard wood screws.

For detailed guidance on joining methods for PVC foam board, see our guide to bonding and joining PVC foam board.

Thermoforming

MDF: Cannot be thermoformed. Curved shapes must be produced by cutting, laminating thin layers, or routing.

PVC foam board: Can be thermoformed by applying heat, allowing curved panels and three-dimensional shapes to be produced without complex tooling. This is a significant advantage for display, architectural, and marine applications requiring curved surfaces.

Machinability Comparison

5. Surface Finishing

Both materials accept paint and laminate finishes, but the preparation requirements and finishing performance differ.

Painting

MDF: Paints very well once the surface is sealed. The porous surface absorbs primer readily, providing excellent mechanical adhesion. The main challenge is sealing the surface — MDF requires a dedicated sealer or high-build primer coat before finish painting, particularly on cut edges which are highly absorbent. Once sealed and primed, MDF accepts water-based and solvent-based paint systems equally well.

PVC foam board: Requires a PVC-compatible adhesion primer — standard wood primers do not bond to the non-polar PVC surface. Once correctly primed, PVC foam board accepts the same paint systems as MDF. The non-porous surface means less primer is absorbed, so primer goes further. Cut edges require filling before painting as they expose the open foam core.

For a complete guide to priming, painting, and finishing PVC foam board, see our guide to how to paint and finish PVC foam board.

Lamination

MDF: Accepts self-adhesive vinyl, HPL, and paper laminates well. The smooth, consistent surface provides a good bonding substrate. HPL bonded to MDF is a standard construction for kitchen and bathroom furniture carcasses.

PVC foam board: Also accepts self-adhesive vinyl and HPL well. Clean the surface with IPA before applying self-adhesive vinyl. HPL bonding follows the same process as for MDF using contact adhesive.

Direct Printing

MDF: Can be UV flatbed printed directly, though the porous surface requires a sealer coat for best results.

PVC foam board: Accepts UV flatbed direct printing without a sealer coat. The smooth, non-porous surface produces sharp, accurate color reproduction. This is a significant advantage for signage and display applications.

Surface Finish Quality

For high-gloss painted finishes, MDF has a slight advantage over lower-density PVC foam boards due to its completely homogeneous surface. However, higher-density Celuka PVC foam board (0.55 g/cm³ and above) produces painted finishes that are equivalent to MDF in quality. For applications requiring the highest gloss finish quality, specify Celuka board. For more detail on density selection, see our PVC foam board density guide.

6. Structural and Physical Properties

Rigidity and Stiffness

MDF is denser and stiffer than most PVC foam board grades. For a given thickness, an MDF panel will deflect less under load than a PVC foam board panel of equivalent thickness. This matters for:

• shelving and horizontal surfaces subject to sustained load

• large unsupported panels where deflection (bowing) is a concern

• structural components in furniture

For applications where stiffness is critical and weight is not a constraint, MDF may be the better specification at equivalent thickness. Alternatively, specifying a thicker PVC foam board panel or incorporating a support frame can achieve equivalent stiffness at lower weight.

Impact Resistance

PVC foam board has better impact resistance than MDF. MDF is brittle and chips or cracks under impact, particularly at edges and corners. PVC foam board absorbs impact energy more effectively due to its foam core structure, making it more resistant to edge damage in handling and use.

Thermal Expansion

PVC foam board has a higher coefficient of thermal expansion than MDF. For large panels in environments with significant temperature variation, this must be accounted for in fixing and joinery design. MDF is more dimensionally stable with temperature change, though it is less stable with humidity change.

Fire Performance

Both materials have fire performance limitations. Standard MDF and standard PVC foam board are combustible. Fire-retardant grades are available for both materials for applications where fire performance is specified. Always verify the fire classification of the specific product against the project specification.

Structural Properties Summary

7. Cost Comparison

Cost is frequently the deciding factor when PVC foam board and MDF are both technically suitable for an application.

Material Cost

MDF is consistently less expensive than PVC foam board on a per-sheet basis. For standard interior applications in dry environments, MDF offers a lower material cost for equivalent panel area.

The cost premium for PVC foam board varies by grade and thickness, but fabricators should generally expect to pay 30–80% more per sheet for PVC foam board compared to MDF of equivalent thickness. Higher-density Celuka boards command a larger premium over MDF than lower-density free foam boards.

Total Cost of Ownership

For applications where moisture resistance matters, the material cost comparison changes significantly when total cost of ownership is considered:

• MDF in a humid or wet environment will degrade and require replacement

• PVC foam board in the same environment will perform indefinitely without degradation

• the cost of replacement, labor, and disruption typically far exceeds the initial material cost premium of PVC foam board

For exterior signage, bathroom furniture, kitchen cabinetry, and marine applications, PVC foam board's higher initial cost is almost always justified by its service life advantage.

Processing Cost

Processing costs are broadly similar for both materials. PVC foam board requires specific primer for painting (a small additional cost) but does not require the sealer coat that MDF needs before painting. CNC routing parameters differ but processing time is comparable. Neither material presents significantly higher processing costs than the other.

Cost Decision Framework

8. Environmental Considerations

MDF

MDF is manufactured from wood fibre — typically a mix of virgin timber and recycled wood waste — bonded with urea-formaldehyde or melamine-formaldehyde resins. Key environmental considerations:

• formaldehyde off-gassing from the resin binder — low-emission grades (E0, E1) are available and should be specified for interior applications

• MDF is not readily recyclable and typically goes to landfill at end of life

• MDF dust is a health hazard requiring extraction and respiratory protection

PVC Foam Board

PVC foam board is a petroleum-derived polymer product. Key environmental considerations:

• does not contain formaldehyde or wood resins — no off-gassing concerns

• PVC is recyclable in principle, though recycling infrastructure for foam board is limited in many regions

• longer service life in demanding applications means less frequent replacement and less material consumption over time

• some manufacturers offer recycled-content PVC foam board products

Practical Environmental Guidance

For projects with formal environmental certification requirements (LEED, BREEAM, etc.), verify the specific product's environmental credentials — including formaldehyde emission class for MDF and recycled content claims for PVC foam board — against the certification criteria. Neither material is inherently "green," but both can be specified responsibly with attention to product selection and end-of-life planning.

9. Application-by-Application Recommendation

Kitchen and Bathroom Furniture

Recommended: PVC foam board

Moisture resistance is the decisive factor. Even MR-grade MDF will degrade over time in kitchen and bathroom environments. PVC foam board performs indefinitely in these conditions without swelling, delaminating, or supporting mould growth. The cost premium is justified by the service life advantage.

Interior Furniture and Cabinetry (Dry)

Recommended: MDF for fixed installations; PVC foam board where weight matters

For fixed interior furniture in dry environments — office furniture, retail fixtures, residential cabinetry — MDF offers equivalent performance at lower cost. Where the furniture will be moved, transported, or handled repeatedly, PVC foam board's weight advantage justifies the cost premium.

Signage — Interior

Recommended: PVC foam board for display and exhibition; MDF acceptable for permanent fixed signage

For signage that will be moved, transported, or used in exhibition contexts, PVC foam board's weight advantage and direct UV print compatibility make it the preferred choice. For permanent fixed interior signage in dry environments, MDF is a cost-effective alternative.

Signage — Exterior

Recommended: PVC foam board

MDF is not suitable for exterior signage in any grade. PVC foam board is the correct specification for all exterior signage applications.

Architectural Trim and Mouldings

Recommended: MDF for interior; PVC foam board for exterior

MDF routes to very clean profiles and paints to an excellent finish for interior architectural trim. For exterior trim and cladding, PVC foam board's moisture resistance makes it the correct specification.

Exhibition and Trade Show Displays

Recommended: PVC foam board

Weight, repeatability, and direct print compatibility make PVC foam board the industry standard for exhibition display fabrication. MDF is rarely used in this application category.

Marine and Coastal Applications

Recommended: PVC foam board

MDF is entirely unsuitable for marine applications. PVC foam board is the standard material for marine interior fit-out, signage, and structural panels.

Conclusion

PVC foam board and MDF are both excellent materials within their respective domains of application. The decision between them is not a matter of one being universally better than the other — it is a matter of matching the material to the application's specific requirements.

Choose MDF when:

• the application is in a dry, controlled interior environment

• cost is the primary constraint and moisture resistance is not required

• the highest possible surface finish quality for painting is needed at minimum cost

• the piece will be permanently fixed and weight is not a factor

Choose PVC foam board when:

• moisture, humidity, or water exposure is present or possible

• weight matters — for transport, handling, or structural loading reasons

• the application is exterior, marine, or coastal

• the piece will be moved, transported, or assembled repeatedly

• direct UV printing is required without a sealer coat

• thermoforming to curved shapes is required

• long service life in demanding conditions is the priority

For fabricators who work across multiple application categories, maintaining stock of both materials and applying this framework consistently will produce better results and fewer callbacks than defaulting to one material for every project.

To explore our full range of PVC foam board products across all densities and thicknesses, visit our PVC Foam Board category or browse our PVC Sheet collection. Our technical team is available to advise on material selection for your specific application.

FAQ

1. Is PVC foam board stronger than MDF?

It depends on the property being measured. MDF is stiffer and has higher flexural strength for a given thickness. PVC foam board has better impact resistance and does not chip or crack at edges under impact the way MDF does. For applications requiring maximum stiffness, MDF or a thicker PVC foam board panel is appropriate. For applications requiring impact resistance and edge durability, PVC foam board is the better choice.

2. Can PVC foam board replace MDF in kitchen cabinets?

Yes, and in most cases it is the better specification. PVC foam board's moisture resistance makes it more suitable than MDF for kitchen environments. It will not swell, delaminate, or support mould growth in the presence of steam, condensation, or water splashes. The higher material cost is offset by longer service life and reduced maintenance.

3. Which is easier to paint — MDF or PVC foam board?

MDF is slightly easier to paint in the sense that standard wood primers bond to it readily. PVC foam board requires a PVC-compatible adhesion primer, but once correctly primed, it accepts the same paint systems as MDF and produces equivalent finish quality. Higher-density Celuka PVC foam board produces painted finishes that are indistinguishable from MDF.

4. Is PVC foam board more expensive than MDF?

Yes, typically 30–80% more expensive per sheet depending on grade and thickness. For dry interior applications where moisture resistance is not required, MDF offers better value. For applications involving moisture, exterior conditions, or repeated transport and handling, PVC foam board's service life advantage makes it more cost-effective over the life of the piece.

5. Can I use MDF outdoors?

No. Even moisture-resistant MDF is not suitable for exterior use. It will absorb moisture, swell, and degrade in outdoor conditions. For exterior applications, PVC foam board is the correct specification.

6. Which material is better for CNC routing?

Both materials route well with appropriate tooling. MDF routes with standard wood router bits and produces very clean profiles. PVC foam board requires specific bit geometry (single-flute O-flute bits) and attention to feed rate and spindle speed to prevent heat buildup. For production CNC routing, both materials are practical — the choice should be based on the application requirements, not the routing process.

7. Does PVC foam board contain formaldehyde?

No. PVC foam board is a polymer product and does not contain wood fibres or formaldehyde-based resins. This makes it preferable to MDF for applications with indoor air quality requirements or where formaldehyde off-gassing is a concern.
